Product Model

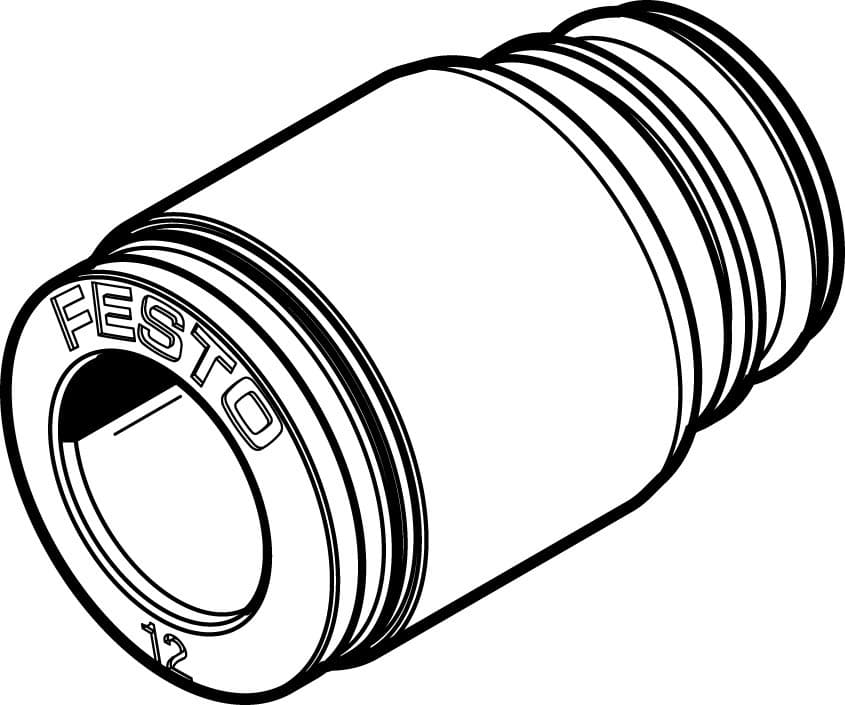

qspkg20-1/2-u
Selling Points
- 1The Festo QSPKG20-1/2-U cartridge features a push-pull principle design, ensuring reliable and efficient operation in various assembly positions.
- 2Designed to work with compressed air in accordance with ISO 8573-1:2010, this cartridge is ideal for a wide range of pneumatic applications.
- 3With a corrosion resistance classification of CRC 1, this cartridge offers low corrosion stress, making it suitable for demanding industrial environments.
- 4The QSPKG20-1/2-U can be mounted in any position, providing flexibility in system design and installation.
- 5Constructed from PA-reinforced housing, POM release ring, and NBR tubing seal, this cartridge ensures durability and reliability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.5mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 13g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 1/2" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132638 |
Specifications may be subject to change without notice
