Product Model

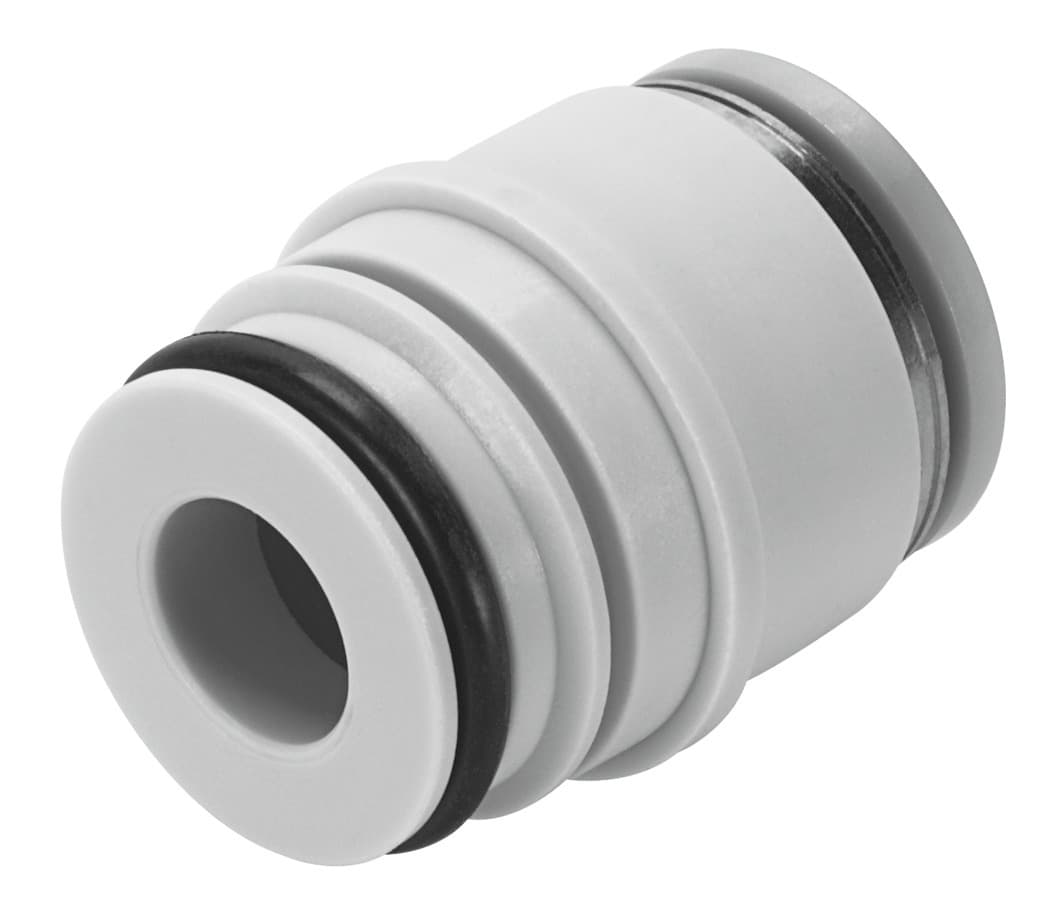

qspkg20-3/8-u
Selling Points
- 1The Festo QSPKG20-3/8-U cartridge features a standard size of 6.4mm nominal diameter, making it compatible with various pneumatic systems. Its push-in connector design ensures easy installation and reliable connections.
- 2This cartridge supports a wide range of operating pressures, including -0.095MPA, 1MPA, -0.95BAR, and 10BAR, ensuring it can handle diverse pneumatic applications. It also operates within a complete temperature range.
- 3The QSPKG20-3/8-U offers optional mounting positions, allowing for flexibility in system design and installation. This feature enhances its versatility in different industrial settings.
- 4The cartridge is designed with a push-pull principle, which simplifies the connection process. This design ensures quick and secure connections, reducing downtime in industrial operations.
- 5The Festo QSPKG20-3/8-U is constructed with high-quality materials, including PA-reinforced housing, POM release ring, and NBR tubing seal. These materials ensure high corrosion resistance and durability, extending the lifespan of the cartridge.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.4mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 9.2g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132637 |
Specifications may be subject to change without notice
