Product Model

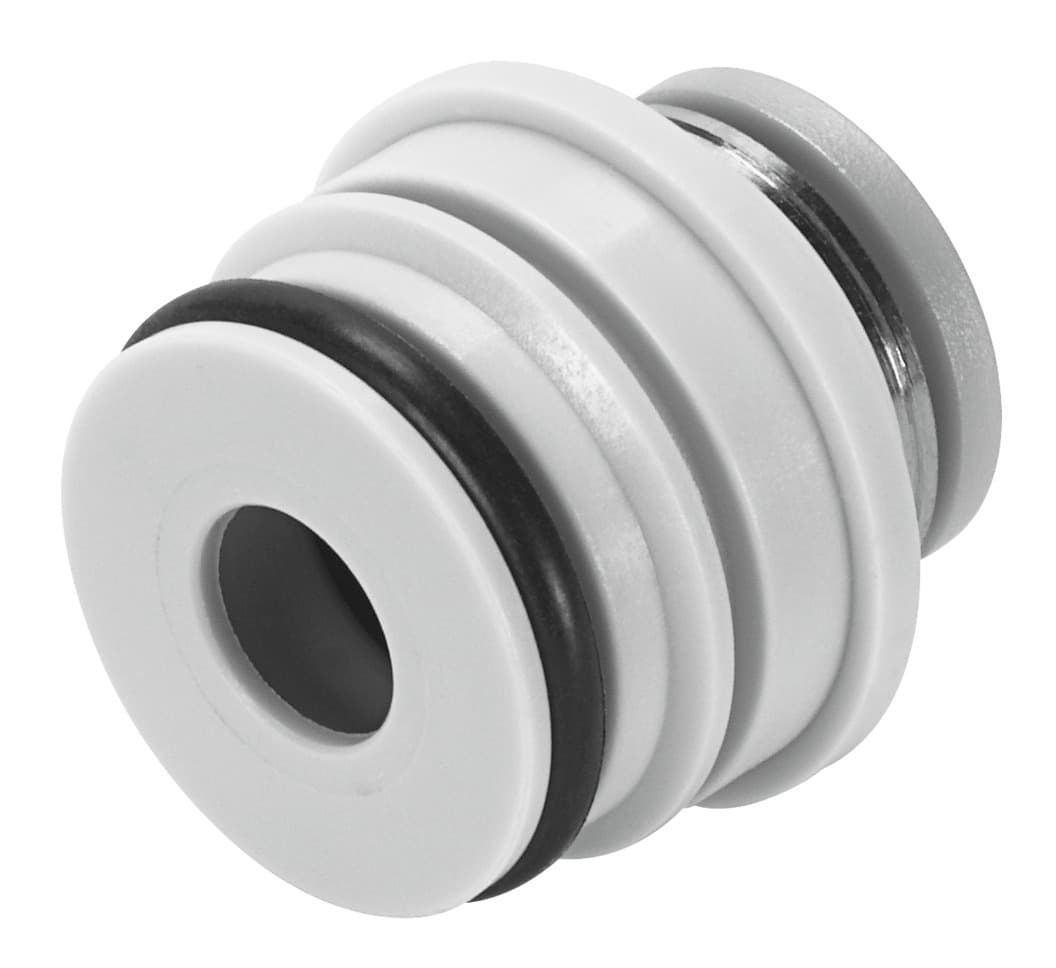

qspkg20-5/16-u
Selling Points
- 1The Festo QSPKG20-5/16-U cartridge features a standard size of 5.4 mm nominal size, ensuring precise fitment in various pneumatic systems.
- 2Equipped with a straight design and push-pull principle, this cartridge offers easy installation and reliable operation.
- 3Compatible with operating pressures ranging from -0.095 MPa to 1 MPa, making it suitable for a wide range of industrial applications.
- 4Constructed with PA-reinforced housing, POM release ring, and NBR tubing seal, this cartridge offers low corrosion stress and high durability.
- 5Featuring optional mounting positions and a mounting pin type, the QSPKG20-5/16-U cartridge provides flexibility in installation and integration into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.4mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 6g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 5/16" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132636 |
Specifications may be subject to change without notice
