Product Model
qspkg20-8
Selling Points

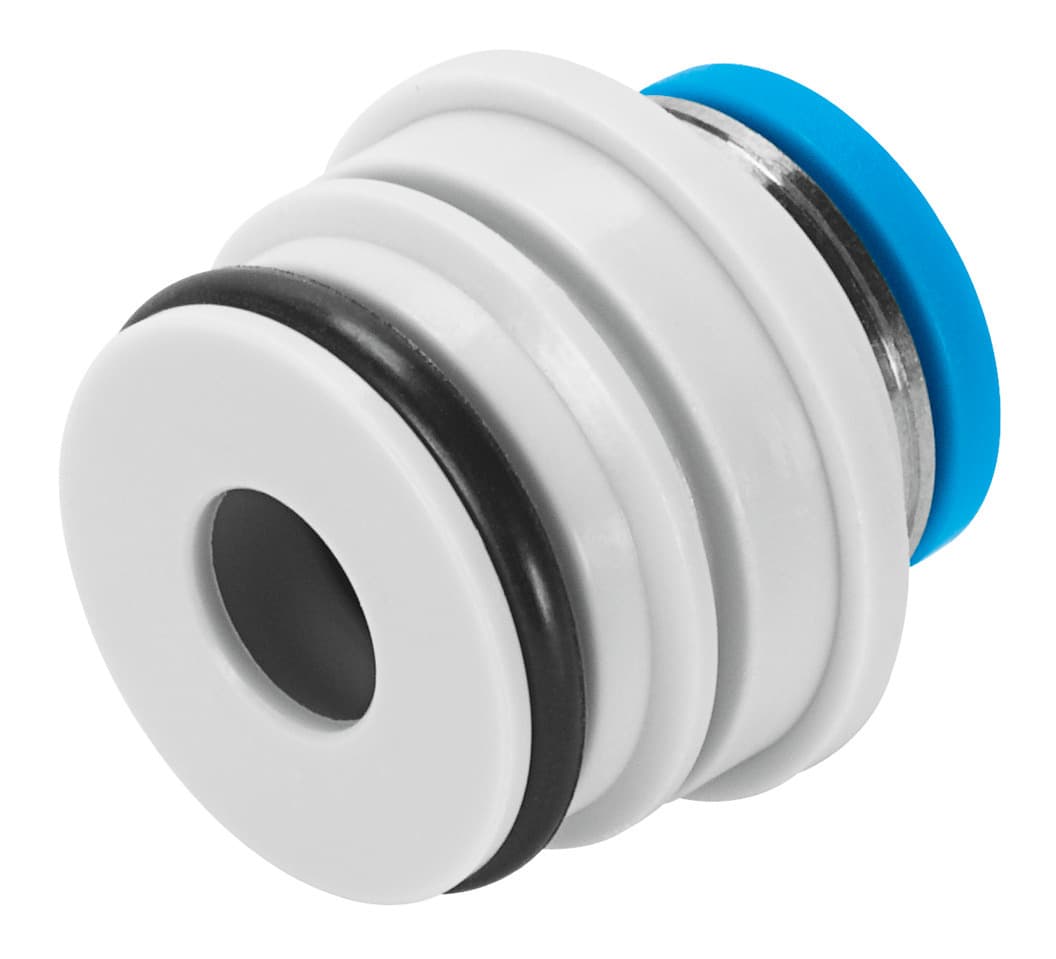

- 1The Festo QSPKG20-8 cartridge features a straight design with an O-ring seal, ensuring secure and leak-free connections in pneumatic systems.
- 2This cartridge can be mounted in any position, offering flexibility in system design and installation.
- 3With an operating pressure range of -0.95 bar to 10 bar, the QSPKG20-8 is suitable for a variety of industrial applications requiring robust pneumatic performance.
- 4The cartridge has a low corrosion stress class (CRC 1) and is RoHS-compliant, ensuring durability and environmental sustainability.
- 5The QSPKG20-8 supports lubricated operation, enhancing system efficiency and reducing wear on components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.4mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 6g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132633 |
Specifications may be subject to change without notice
