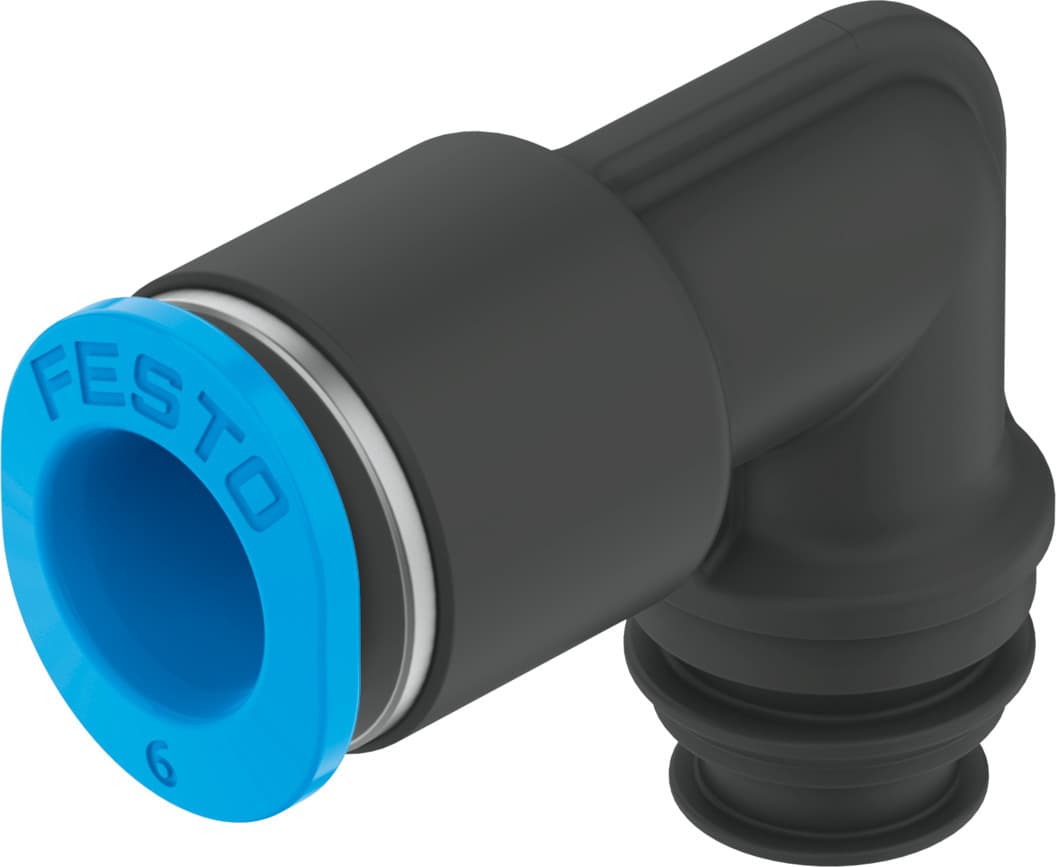

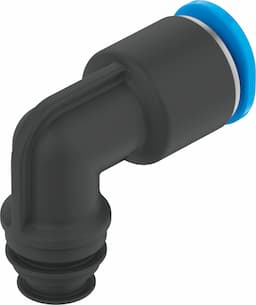

Product Model
qsplk10-4
Selling Points
- 1The QSPLK10-4 features a mini nominal size of 2.3 mm, making it perfect for compact systems and applications where space is limited.
- 2This cartridge operates on a push-pull principle, ensuring easy and reliable operation with minimal effort.
- 3Equipped with an O-ring seal on the screwed plug, it provides a secure and leak-free connection, ensuring optimal performance.
- 4The QSPLK10-4 can be mounted in any position, offering flexibility in system design and installation.
- 5Designed to operate with compressed air to ISO 8573-1:2010, this cartridge is suitable for a wide range of pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 2.1g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132601 |
Specifications may be subject to change without notice
