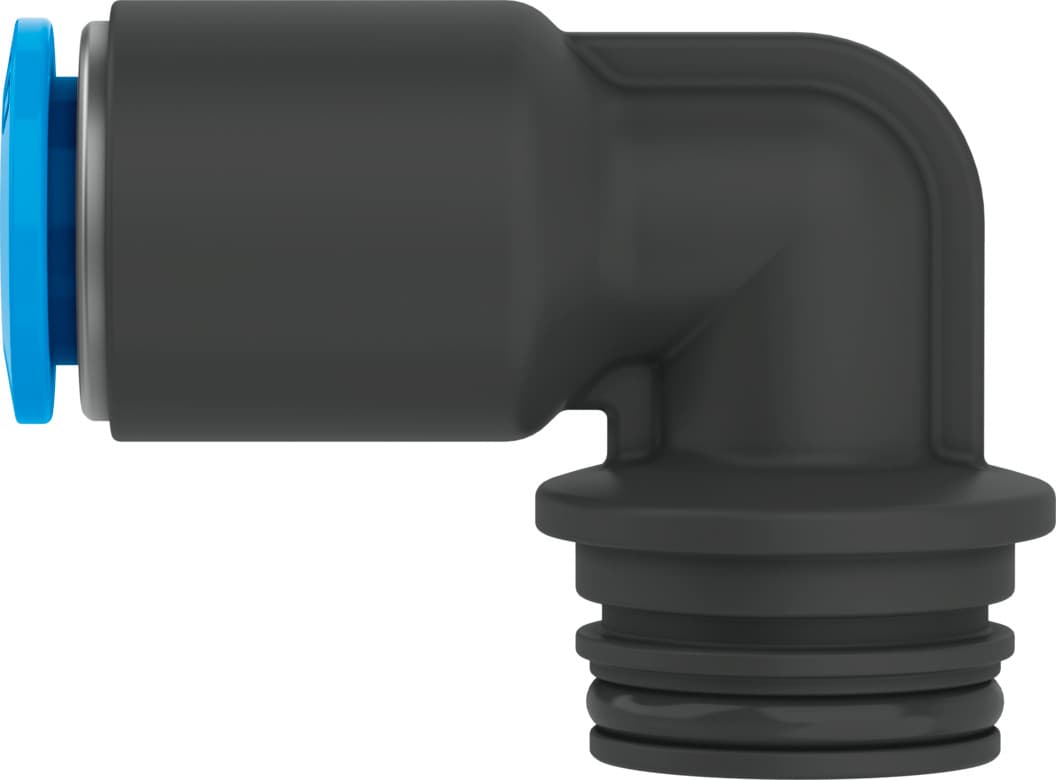

Festo QSPLK18-3/8-U Pneumatic Cartridge - High-Quality Air Fittings

Selling Points

1The Festo QSPLK18-3/8-U is made with PA-reinforced housing and POM release ring, ensuring durability and reliability in pneumatic applications.
2This cartridge features an L-shape design with a push-pull principle, allowing for easy installation and operation in various pneumatic systems.
3Designed for use with compressed air to ISO 8573-1:2010 standards, this cartridge ensures consistent performance in a wide range of applications.
4With a corrosion resistance classification of CRC 1, the QSPLK18-3/8-U is suitable for environments with low corrosion stress, making it ideal for industrial settings.
5The cartridge can be mounted in any position and is compatible with tubing outside diameters of 3/8 inches, offering flexibility in system design and installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6.5mm
Mounting position	Any	Design	L-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 145psi	Maritime classification	See certificate
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5°C 60°C	Product weight	10.9g
Type of mounting	Mounting pin	Pneumatic connection 1	Cartridge 18 mm
Pneumatic connection 2	for pneumatic tubing outside diameter 3/8"	Ambient temperature Fahrenheit	23°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PA-reinforced	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	132641

Specifications may be subject to change without notice
