Product Model
qsplk18-4
Selling Points

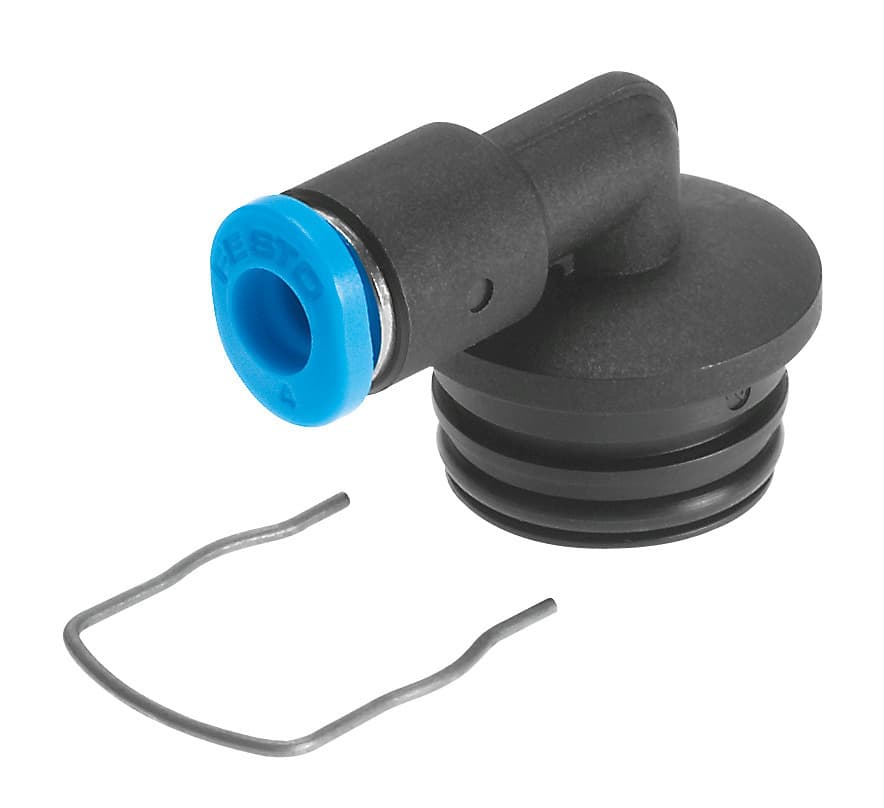

- 1The Festo QSPLK18-4 cartridge is designed for reliable performance in compressed air applications, ensuring consistent operation across a wide temperature range.
- 2With a nominal size of 2.3 mm, this cartridge is ideal for miniaturized systems, offering a compact yet robust solution for pneumatic connections.
- 3The QSPLK18-4 features a push-pull principle, making it easy to install and remove without the need for specialized tools, enhancing user convenience.
- 4Classified as CRC 1, this cartridge exhibits low corrosion stress, making it suitable for use in various environments where moisture or corrosive substances are present.
- 5The QSPLK18-4 can be mounted in any position, providing flexibility in system design and installation, and it is compatible with tubing outside diameters of 4 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 3.2g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130843 |
Specifications may be subject to change without notice
