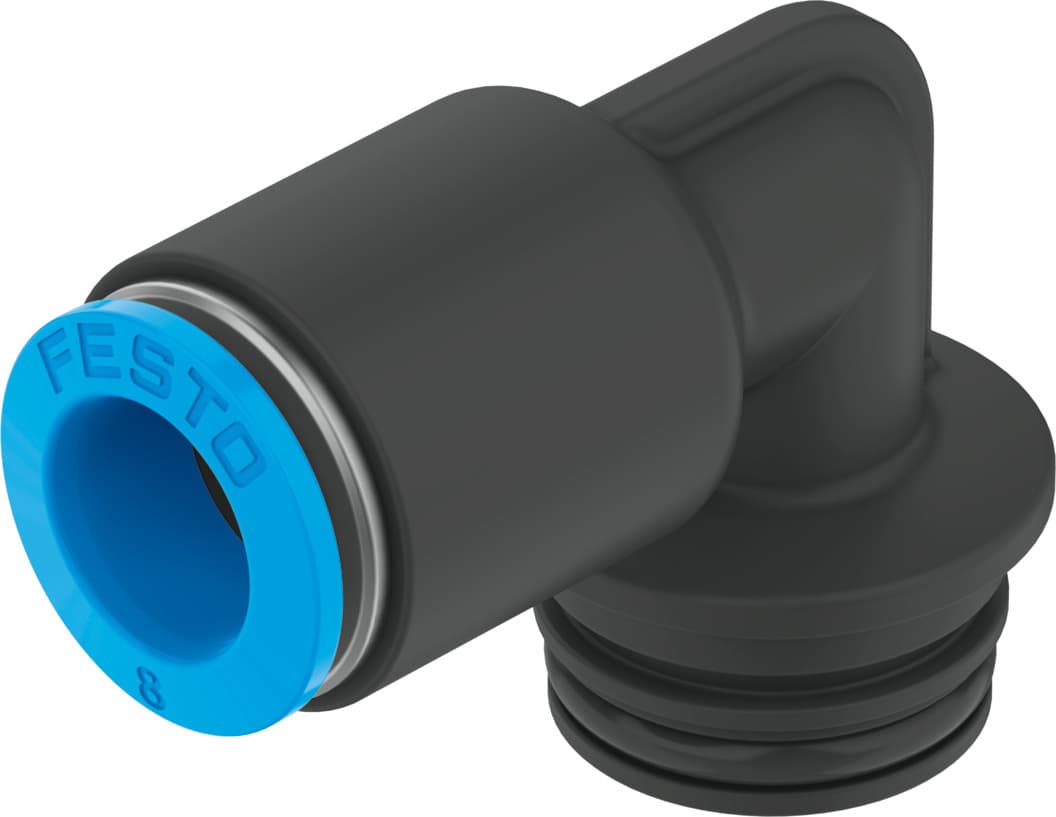

Product Model
qsplk18-8
Selling Points
- 1The QSPLK18-8 pneumatic cartridge operates within a pressure range of -0.095 MPa to 1 MPa, making it suitable for demanding applications.
- 2This cartridge features an L-shape design with a push-pull principle, ensuring easy and reliable operation.
- 3Equipped with an O-ring seal on the screwed plug, providing a secure and leak-free connection.
- 4Classified as CRC 1, indicating low corrosion stress, making it suitable for various environments.
- 5Meets maritime classification standards, ensuring its reliability in marine applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.2mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 7.5g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130845 |
Specifications may be subject to change without notice
