Product Model
qsplkg10-6
Selling Points

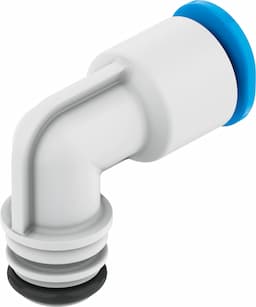

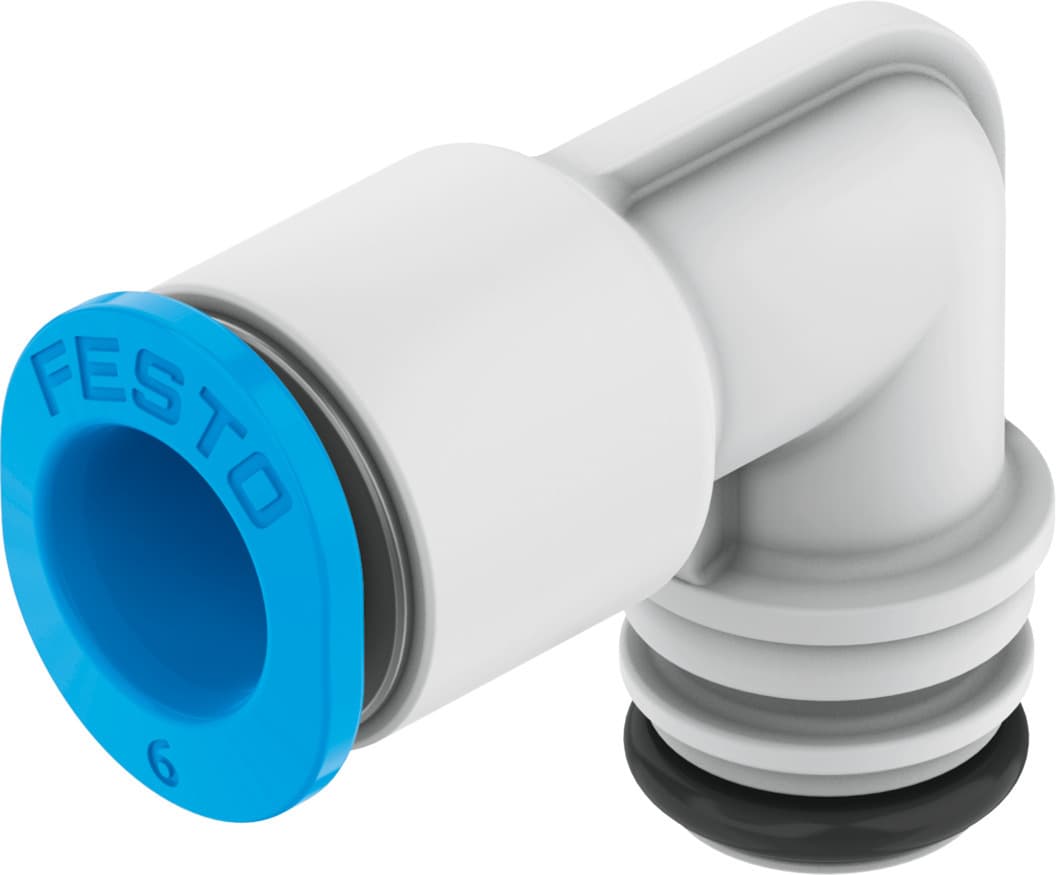

- 1The Festo QSPLKG10-6 cartridge is designed for mini pneumatic applications, featuring a nominal size of 3.3 mm and an operating pressure range of -0.95 to 10 bar.
- 2This cartridge uses an O-ring seal on the screwed plug, ensuring reliable operation and low corrosion stress (CRC class 1).
- 3The QSPLKG10-6 is versatile, allowing for any mounting position and compatible with compressed air to ISO 8573-1:2010, making it suitable for various industrial settings.
- 4The cartridge is made from RoHS-compliant materials, including PA-reinforced housing and POM release ring, ensuring durability and compliance with environmental regulations.
- 5With a product weight of 2.7 grams and a blue-colored release ring, the QSPLKG10-6 is easy to handle and integrate into your pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.3mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 2.7g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132921 |
Specifications may be subject to change without notice
