Product Model
qsplkg18-10
Selling Points

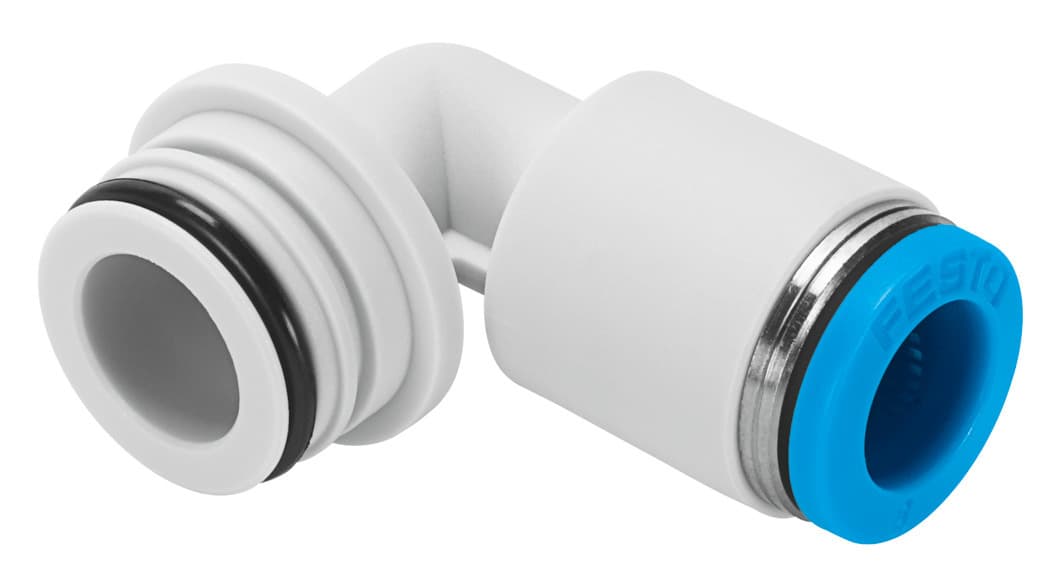

- 1The Festo QSPLKG18-10 pneumatic cartridge is designed with an L-shaped structure, making it versatile for various mounting positions and applications.
- 2Equipped with an O-ring seal on the screwed plug, this cartridge ensures a secure and reliable connection, even under high operating pressures.
- 3Made from robust materials, including PA-reinforced housing and POM release ring, the QSPLKG18-10 offers excellent corrosion resistance and durability.
- 4Compatible with compressed air as per ISO 8573-1:2010, this cartridge supports lubricated operation and operates within a temperature range of -5°C to 60°C.
- 5Available in packs of 10, the QSPLKG18-10 is a convenient and efficient solution for industrial pneumatic systems, ensuring smooth and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 10.8g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132947 |
Specifications may be subject to change without notice
