Product Model

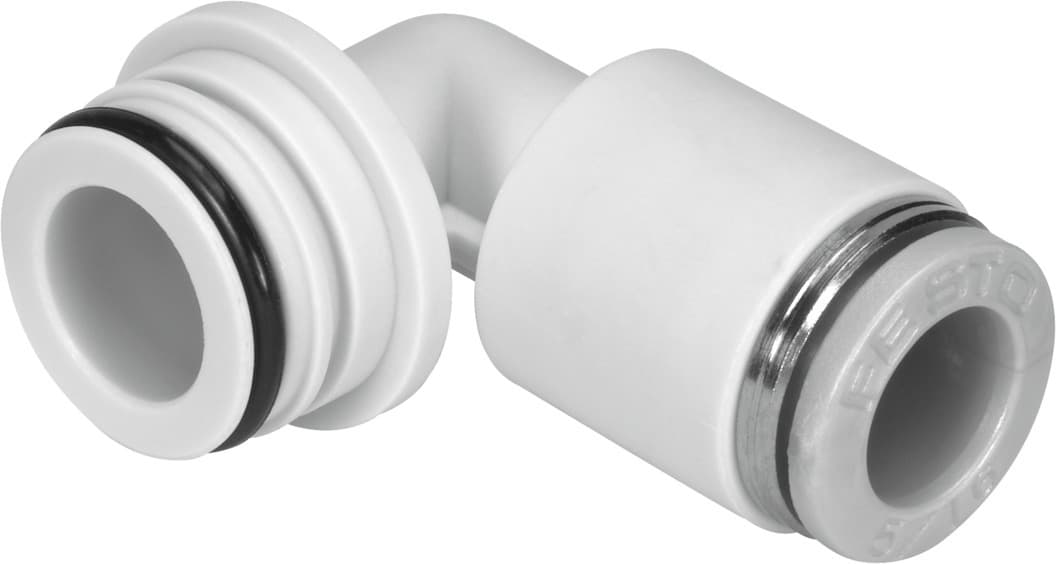

qsplkg18-3/8-u

Selling Points
- 1The Festo QSPLKG18-3/8-U is a high-quality automation component designed to provide reliable performance and efficient operation in various industrial applications. Its robust construction ensures durability and longevity.
- 2This component is part of Festo's extensive range of pneumatic and electrical automation solutions, offering a versatile selection for diverse handling and control needs.
- 3The QSPLKG18-3/8-U is manufactured by Festo, a renowned brand in the automation industry, ensuring compliance with stringent quality standards such as AS9120B, ISO 9001:2015, and FAA AC 00-56B.
- 4With its compact design and standardized dimensions, the QSPLKG18-3/8-U can be easily integrated into existing systems, simplifying the procurement process and enhancing overall system efficiency.
- 5Festo's commitment to quality and reliability is reflected in the QSPLKG18-3/8-U, which undergoes rigorous quality assurance measures to guarantee proper fit, form, and function, ensuring optimal performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Size | Standard | Nominal width | 6.5mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 10.9g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" | Ambient temperature Fahrenheit | 23°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132949 |
Specifications may be subject to change without notice
