Product Model
qsplkg18-8
Selling Points

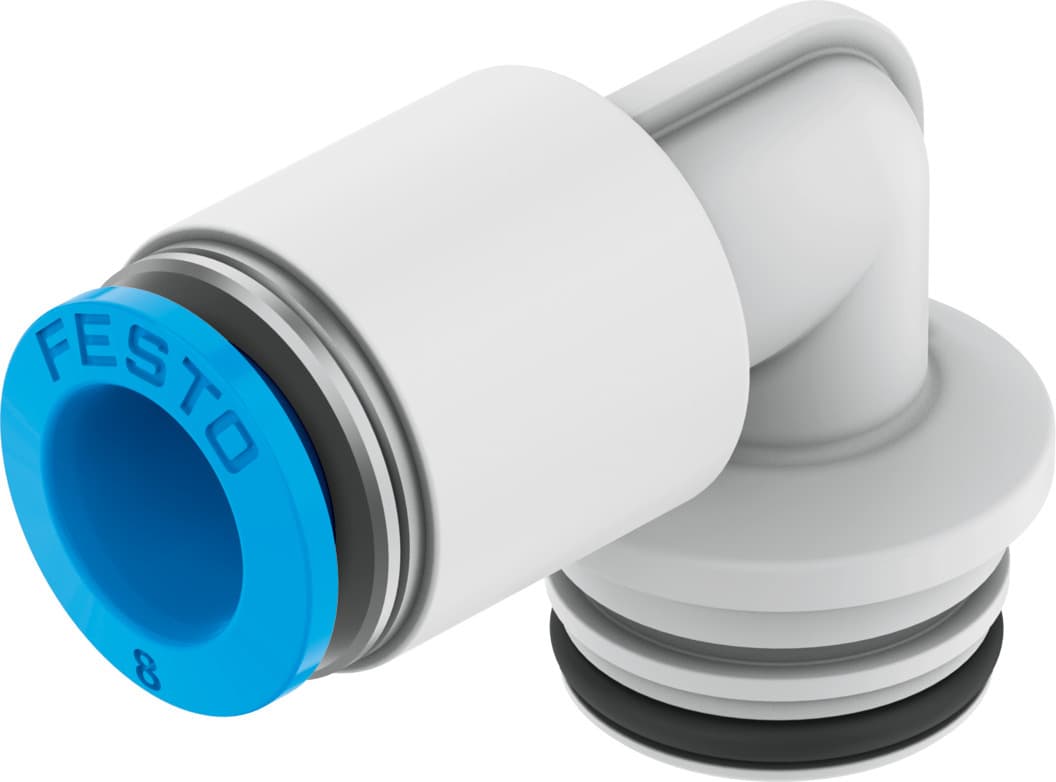

- 1The Festo QSPLKG18-8 cartridge features an L-shape design and a push-pull principle, ensuring easy and secure mounting.
- 2This cartridge is designed for pneumatic connections with a nominal width of 5.2 mm and a standard size, making it versatile for various applications.
- 3The QSPLKG18-8 operates within a wide temperature range of -5 °C to 60 °C and supports compressed air as per ISO 8573-1:2010, ensuring reliable performance in different environments.
- 4The cartridge is equipped with an O-ring seal on the screwed plug and a blue releasing ring, providing a secure and easy-to-use connection system.
- 5Made from RoHS-compliant materials, including PA-reinforced housing and POM releasing ring, the QSPLKG18-8 meets high standards of quality and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.2mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 7.5g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132946 |
Specifications may be subject to change without notice
