Product Model
qspllk10-4
Selling Points

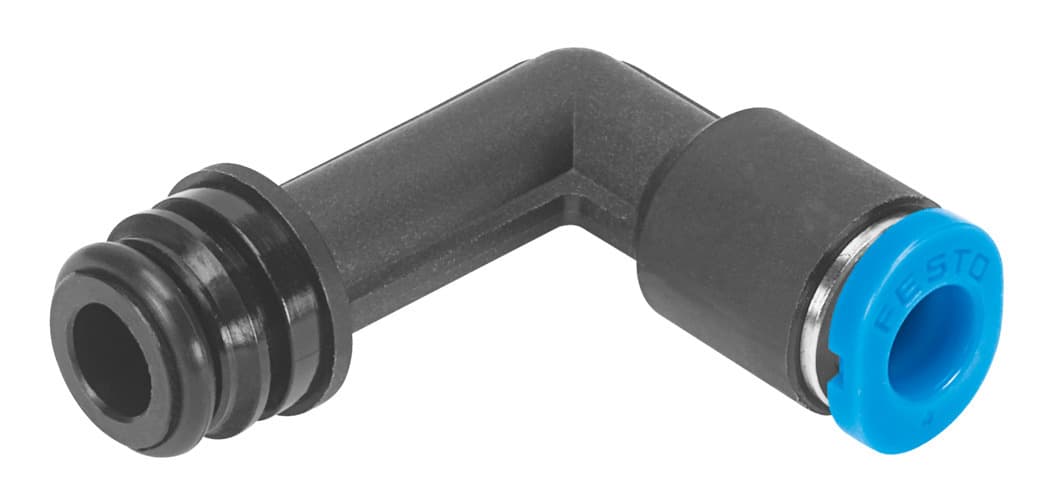

- 1The Festo QSPLLK10-4 is an L-shaped pneumatic air cartridge fitting designed for compressed air applications, featuring a push-in connector for easy installation.
- 2This product is part of the QS series by Festo, known for its high-quality and reliable pneumatic fittings, ensuring smooth operation in various environments.
- 3The QSPLLK10-4 has a nominal size of 2.3 mm and is designed with an O-ring seal on the screwed plug, providing a secure and leak-free connection.
- 4It operates within a temperature range of -5°C to 60°C and supports lubricated operation, making it suitable for diverse industrial applications.
- 5The product is made from reinforced polyamide nylon (PA) and features a high-alloy stainless steel tube retaining claw, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 2.3mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 2.4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132603 |
Specifications may be subject to change without notice
