Product Model
qspllk10-6
Selling Points

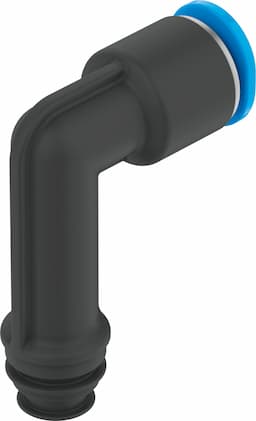

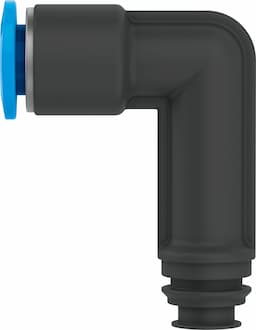

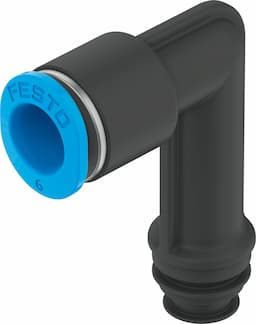

- 1The Festo QSPLLK10-6 is a reliable pneumatic fitting designed for compressed air applications, featuring a push-pull principle and an L-shaped long elbow design for efficient air flow.
- 2This cartridge fitting is made from reinforced polyamide nylon (PA) and includes a blue release ring, ensuring high corrosion resistance and durability in various environments.
- 3With a nominal size of 3.5 mm and operating pressure ranging from -0.95 bar to 10 bar, the QSPLLK10-6 is suitable for a wide range of pneumatic systems, including those used in industrial settings.
- 4The fitting is designed with a thread sealing ring and NBR tubing seal, providing a secure and leak-free connection. It also supports lubricated operation, enhancing its performance and longevity.
- 5The QSPLLK10-6 is compliant with ISO 8573-1:2010 standards and is RoHS-compliant, making it an environmentally friendly choice for your pneumatic system needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.5mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 3.3g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132604 |
Specifications may be subject to change without notice
