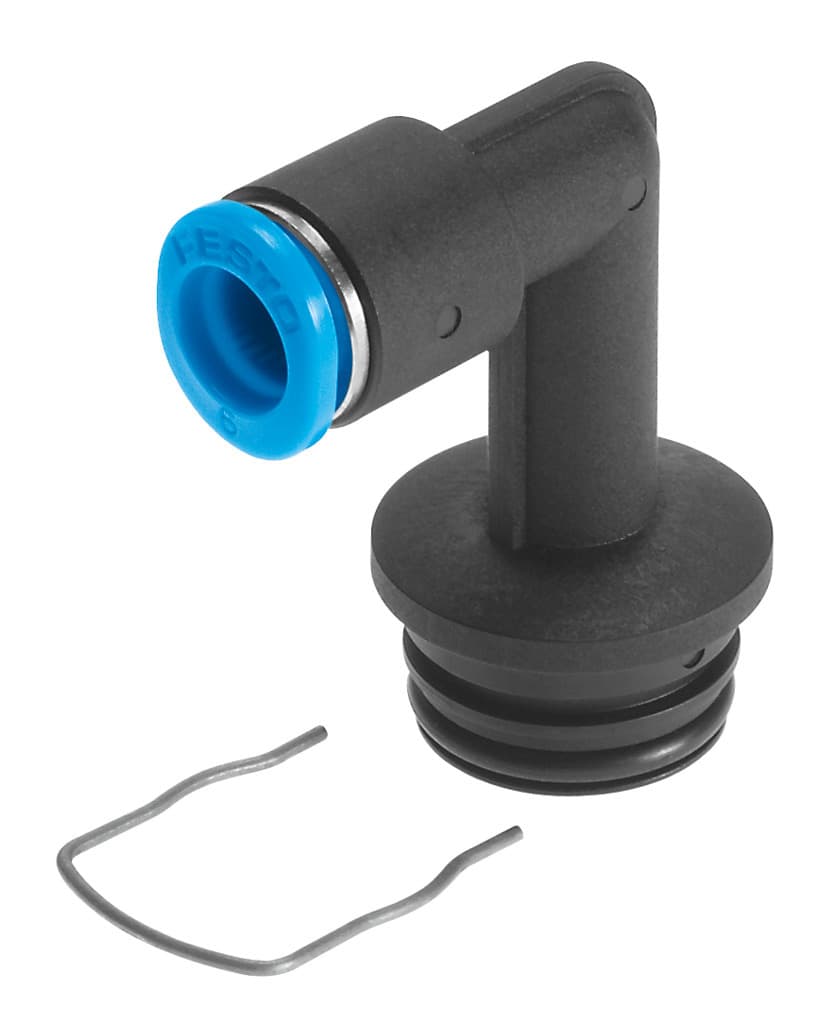

Festo QSPLLK18-6 Cartridge: High-Quality Pneumatic Fitting

Selling Points

1The Festo QSPLLK18-6 cartridge is designed with a mini size of 3.6 mm nominal width, making it ideal for precise and compact pneumatic systems.
2Equipped with an O-ring type of seal on the screwed plug, this cartridge ensures a reliable and durable connection, minimizing leaks and maintaining system integrity.
3The QSPLLK18-6 offers optional mounting positions, allowing for flexible installation in various pneumatic setups, including L-shape and long designs.
4This cartridge operates within a wide pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar), making it suitable for diverse pneumatic applications.
5Made from RoHS-compliant materials, including PA-reinforced housing and POM release ring, the QSPLLK18-6 meets low corrosion stress standards (CRC 1) and conforms to LABS (PWIS) and VDMA24364-B1/B2-L specifications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	3.6mm
Type of seal on screwed plug	O-ring	Mounting position	Any
Design	L-shape, long	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5°C 60°C	Product weight	4.3g
Type of mounting	Mounting pin	Pneumatic connection 1	Cartridge 18 mm
Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm	Releasing ring color	Blue
Note on materials	RoHS-compliant	Housing material	PA-reinforced
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130847

Specifications may be subject to change without notice
