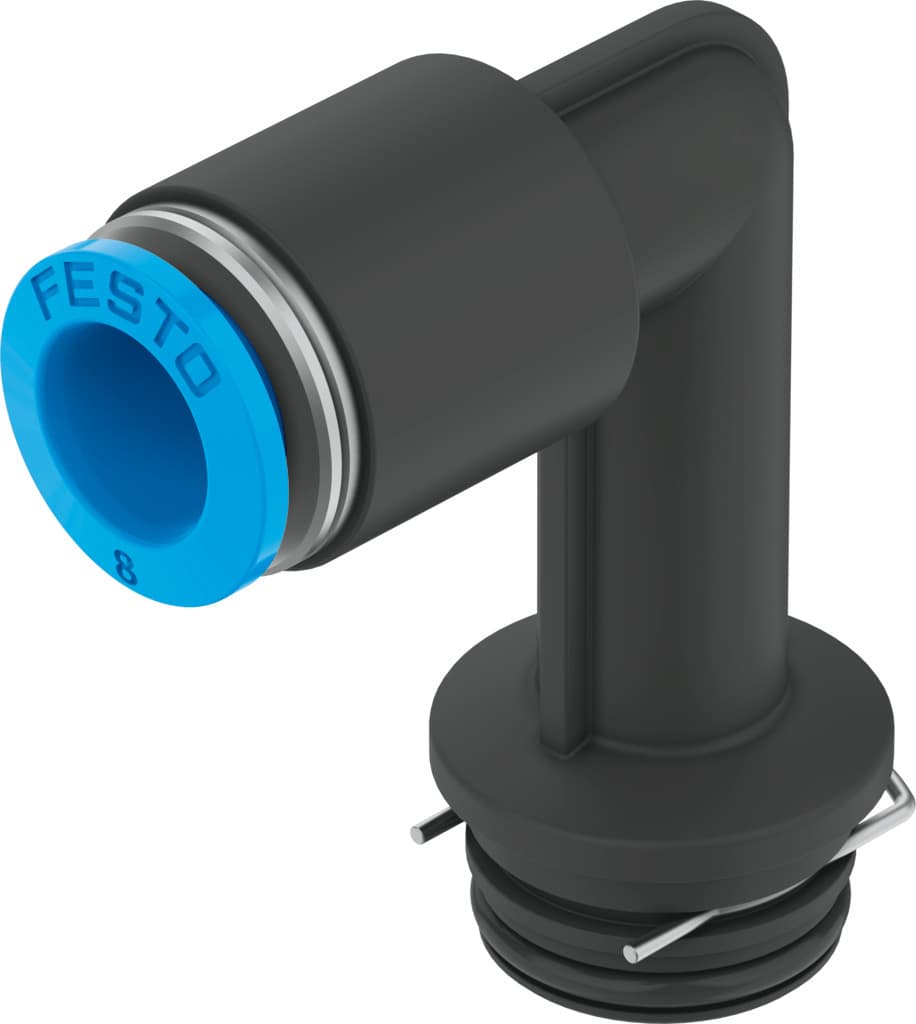

Festo QSPLLK18-8 Pneumatic Cartridge Fitting

Selling Points

1The Festo QSPLLK18-8 is a high-quality pneumatic cartridge fitting designed for compressed air applications, featuring an L-shape, long design and a nominal size of 5.2 mm.
2This fitting is equipped with an O-ring seal on the screwed plug, ensuring reliable operation and durability. It also supports optional mounting positions for increased flexibility.
3The QSPLLK18-8 operates within a wide temperature range of -5°C to 60°C and supports lubricated operation, making it suitable for various industrial applications.
4With a product weight of 8.1 grams and a mounting pin design, this fitting is lightweight yet robust, ensuring easy installation and reliable performance.
5The QSPLLK18-8 is RoHS-compliant and features a PA-reinforced housing, POM release ring, NBR tubing seal, and high-alloy stainless steel tube retaining claw for enhanced corrosion resistance and durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	5.2mm
Type of seal on screwed plug	O-ring	Mounting position	Any
Design	L-shape, long	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5°C 60°C	Product weight	8.1g
Type of mounting	Mounting pin	Pneumatic connection 1	Cartridge 18 mm
Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm	Releasing ring color	Blue
Note on materials	RoHS-compliant	Housing material	PA-reinforced
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130848

Specifications may be subject to change without notice
