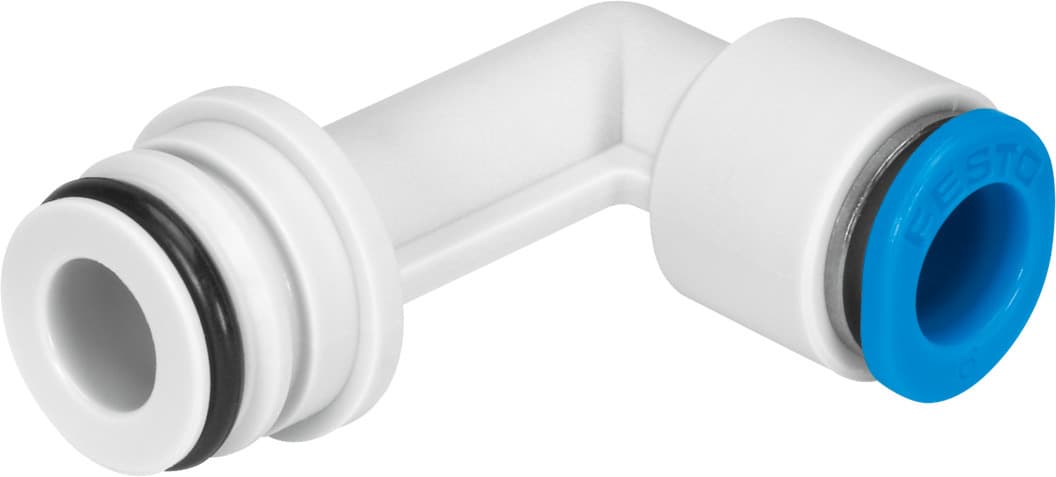

Product Model
qspllkg14-6
Selling Points
- 1Versatile Design - The Festo Push-in L-fitting QSL-G1/4-6 offers a 360° orientable design, making it easy to connect and disconnect tubing in any position.
- 2High-Quality Materials - Constructed from nickel-plated brass and PBT housing, this fitting ensures durability and resistance to corrosion.
- 3Sealing Efficiency - Equipped with a sealing ring, this fitting provides a secure and leak-free connection, suitable for compressed air and water applications.
- 4Operating Pressure Range - The QSL-G1/4-6 supports a wide operating pressure range from -0.095 MPa to 0.6 MPa, making it suitable for various pneumatic systems.
- 5Easy Installation - With a nominal torque of 9 Nm and a tolerance of ±20%, this fitting is easy to install and ensures a secure connection every time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Nominal width | 3.4mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 4g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 14 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132942 |
Specifications may be subject to change without notice
