Product Model
qspllkg14-8
Selling Points

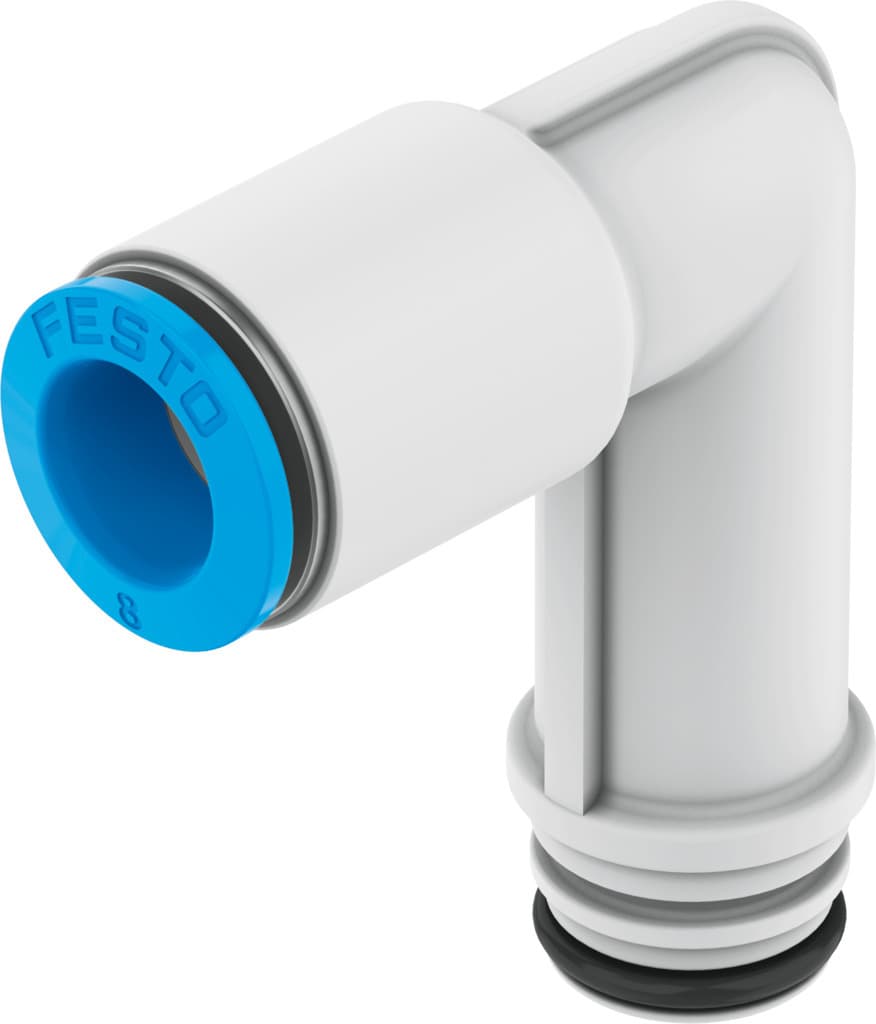

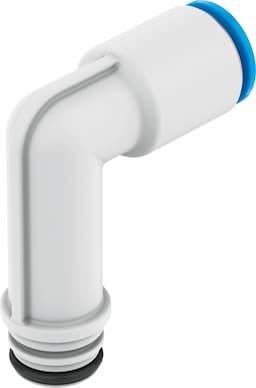

- 1The Festo QSL-G1/4-8 push-in L-fitting features a push-pull principle design, making installation quick and simple.
- 2This fitting operates within a wide temperature range of -10°C to +80°C and supports pressures up to 14 bar, ensuring reliable performance in various conditions.
- 3With a low corrosion stress classification (CRC 1), the QSL-G1/4-8 is suitable for applications requiring minimal corrosion resistance.
- 4Constructed from nickel-plated brass for the screwed plug and PBT for the housing, this fitting is RoHS compliant and durable.
- 5The male thread G1/4 connection allows for easy integration with various pneumatic systems, while the push-in design ensures secure connections to 8 mm tubing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.7mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 8.1g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 14 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132943 |
Specifications may be subject to change without notice
