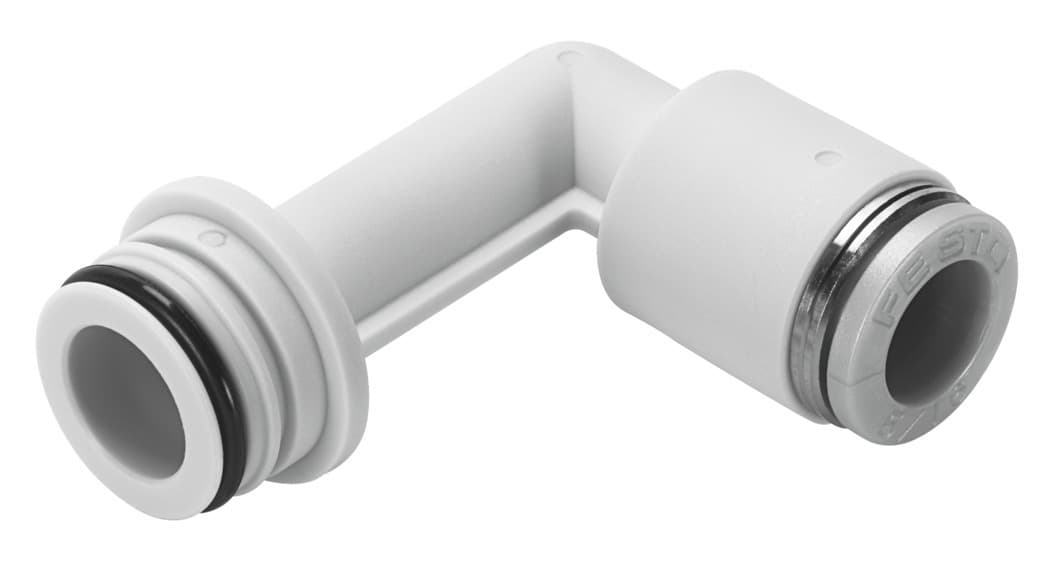

Festo QSL-1/8-10 Push-In L-Fitting - High-Quality Pneumatic Fitting

Selling Points

1The Festo QSL-1/8-10 Push-In L-Fitting is engineered with a push-pull principle for easy installation and reliable performance. It ensures consistent functionality across various industrial applications.
2This fitting is designed to operate within a temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it suitable for diverse pneumatic systems.
3The QSL-1/8-10 features a male thread of R1/8 and is compatible with hoses of exterior diameters up to 10 mm, providing flexibility in system design.
4The product is made from high-quality materials, including PBT housing, POM sleeve, and NBR tube seal, ensuring durability and resistance to corrosion.
5The Festo QSL-1/8-10 is RoHS compliant and suitable for use with compressed air according to ISO 8573-1:2010, as well as water under specific conditions, making it versatile for various industrial processes.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6.4mm
Type of seal on screwed plug	O-ring	Mounting position	Any
Design	L-shape, long	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5°C 60°C	Product weight	12g
Type of mounting	Mounting pin	Pneumatic connection 1	Cartridge 18 mm
Pneumatic connection 2	for pneumatic tubing outside diameter 10 mm	Releasing ring color	Blue
Note on materials	RoHS-compliant	Housing material	PA-reinforced
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	132951

Specifications may be subject to change without notice
