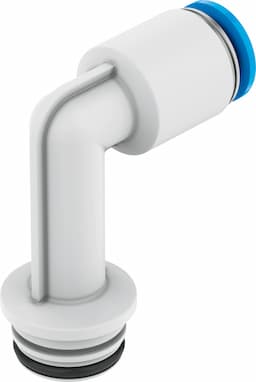

Product Model
qspllkg18-8
Selling Points
- 1Reliable Pneumatic Connection: The Festo QSL-G1/8-8 features a robust push-in design with a G1/8 male thread, ensuring secure connections in pneumatic systems.
- 2Wide Operating Pressure Range: This fitting supports operating pressures from -0.95 to 16 bar, making it suitable for various industrial applications.
- 3Temperature Flexibility: The QSL-G1/8-8 operates within an ambient temperature range of 0 to 150°C, providing flexibility in diverse environments.
- 4Corrosion Resistance: Constructed from nickel-plated brass and FPM materials, this fitting offers excellent corrosion resistance and durability.
- 5Easy Installation: The push-in design allows for quick and easy installation, reducing setup time and increasing productivity in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.2mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 8.1g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132950 |
Specifications may be subject to change without notice
