Product Model
qspllkg20-8
Selling Points

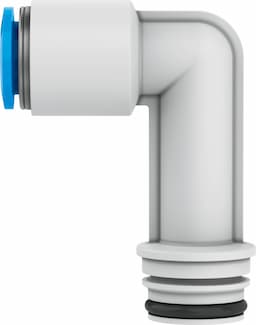

- 1The Festo QSPLLKG20-8 is a high-quality, L-shape, long pneumatic push-in fitting designed for efficient connections in automation systems.
- 2This fitting features an O-ring seal on the screwed plug, ensuring a secure and reliable connection in various mounting positions.
- 3The QSPLLKG20-8 is part of Festo's Core Range, offering quick delivery and high-quality components for your automation needs.
- 4With a nominal width of 4.8 mm, this fitting is suitable for a wide range of pneumatic applications, including those requiring high pressure and temperature resistance.
- 5The QSPLLKG20-8 is packaged in sets of 10, making it convenient for bulk purchases and ensuring consistent performance in your automation setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.8mm |
Type of seal on screwed plug | O-ring | Mounting position | Any |
Design | L-shape, long | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -5°C 60°C | Product weight | 11g |
Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132863 |
Specifications may be subject to change without notice
