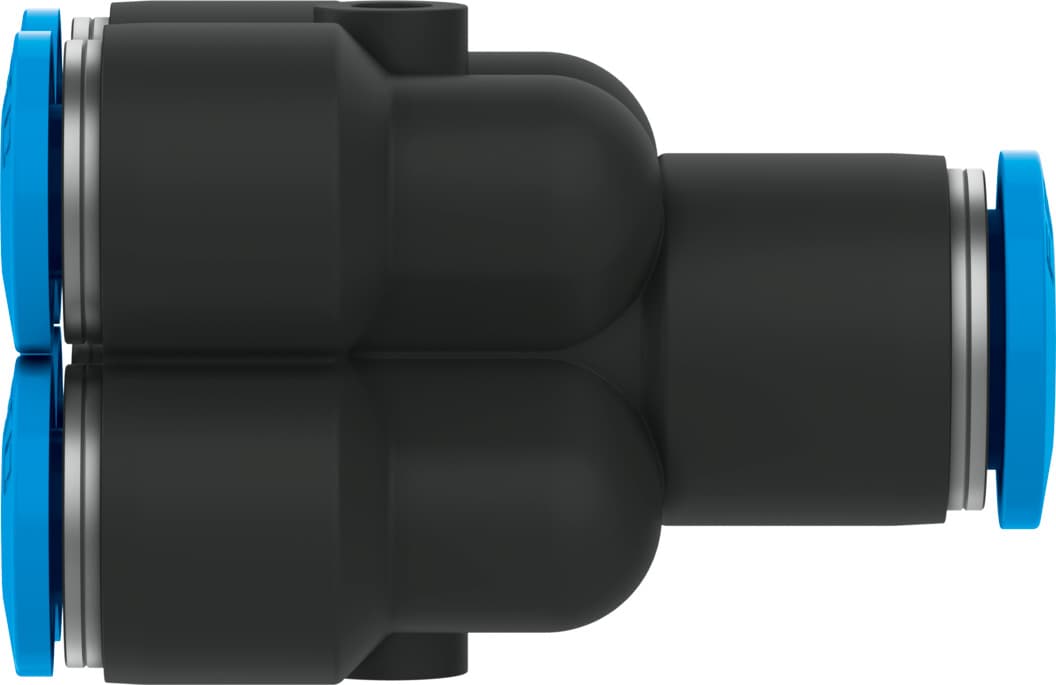

Festo QSQ-6-4 Pneumatic Fitting: High-Quality Double Y Tube-to-Tube Adaptor

Selling Points

1The Festo QSQ-6-4 features a low corrosion stress classification, ensuring it can withstand harsh environments and maintain its integrity over time.
2This pneumatic fitting is designed to operate across a wide range of pressures from -0.95 to 14 bar, making it suitable for various applications.
3The QSQ-6-4 can be used with both compressed air and water, providing flexibility in operating mediums and enhancing its versatility.
4Made from PBT (Polybutylene Terephthalate), this fitting offers robust construction and durability, ensuring reliable performance in demanding conditions.
5With an ambient temperature range of -10 to 80 °C, the QSQ-6-4 is well-suited for use in a variety of temperature conditions, making it an ideal choice for diverse applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3.1mm
Mounting position	Any	Structural design	Push-pull principle
Pack size	1	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at 0 - 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	14g
No. of outlets	4	No. of supply lines	1
Pneumatic connection 1	For pneumatic tubing outside diameter 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153209

Specifications may be subject to change without notice
