Product Model

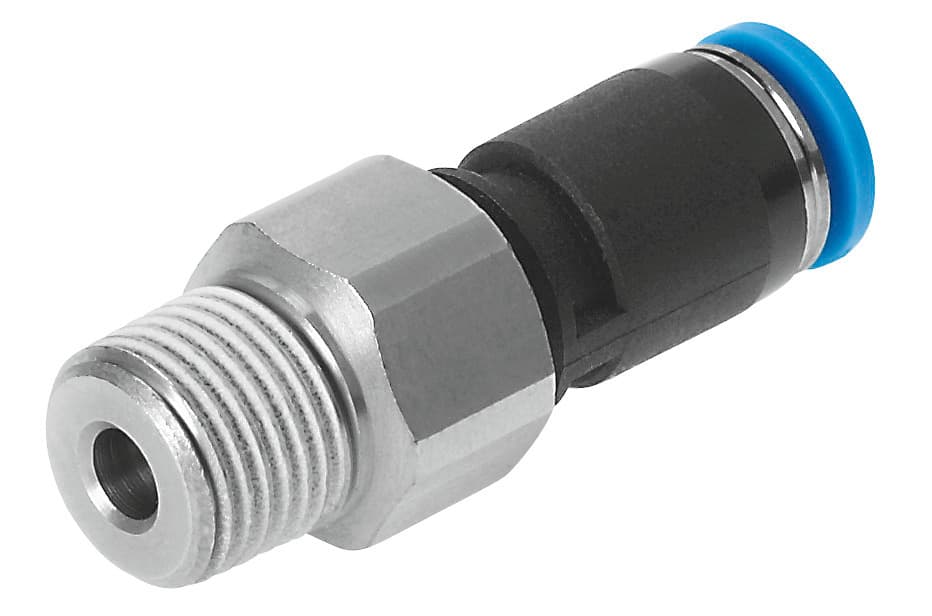

qsr-g1/2-12
Selling Points
- 1The Festo QSR-G1/2-12 push-in fitting is designed for rotatable connections, ensuring flexibility and ease of use in pneumatic systems.
- 2Equipped with a sealing ring, this fitting provides a secure and reliable seal, ensuring minimal leakage and optimal performance.
- 3The QSR-G1/2-12 features a straight design and an optional mounting position, offering versatility in installation and application.
- 4With a nominal size of 8 mm, this fitting is suitable for a wide range of pneumatic connections, making it a versatile component in automation systems.
- 5The Festo QSR-G1/2-12 is part of Festo's high-quality product range, ensuring durability and reliability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Max. rotational speed | 200rpm |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Max. radial torque | 0.025Nm |
Nominal tightening torque | 26Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 78g | Type of mounting | External hexagon, AF 24 |
Pneumatic connection 1 | External thread G1/2 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186284 |
Specifications may be subject to change without notice
