Product Model

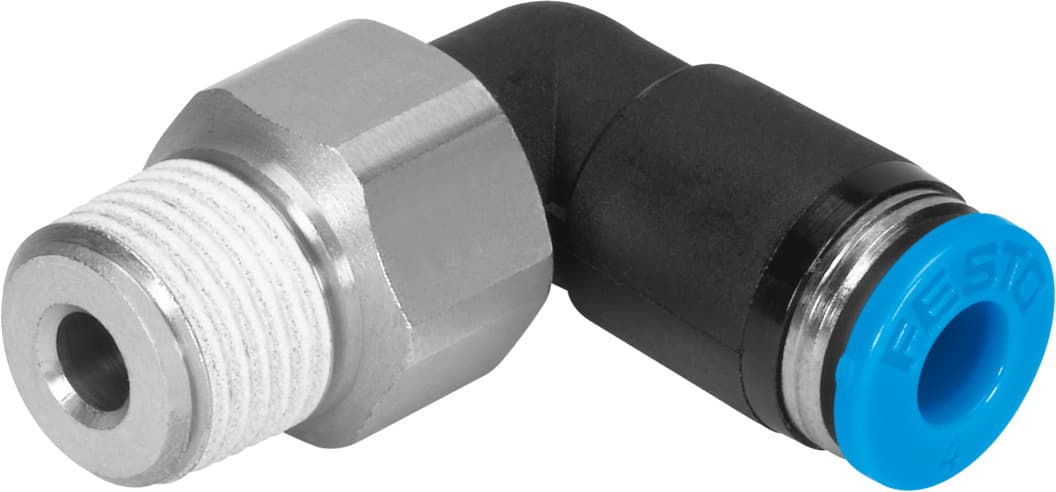

qsrl-3/8-10
Selling Points
- 1The QSRL-3/8-10 features a 360° rotatable design, ensuring flexibility and ease of use in various applications.
- 2Equipped with a ball bearing, this fitting provides smooth and reliable operation, reducing wear and tear.
- 3The external hex male thread ensures secure connections and easy handling, making it a versatile choice for pneumatic systems.
- 4The QSRL-3/8-10 supports operating pressures up to 6 bar, making it suitable for a wide range of pneumatic applications.
- 5Designed with low corrosion stress, this fitting is ideal for environments where corrosion could be a concern, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.2mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Max. rotational speed | 300rpm |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Max. radial torque | 0.02Nm |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 56g | Type of mounting | External hexagon, AF 22 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153416 |
Specifications may be subject to change without notice
