Product Model

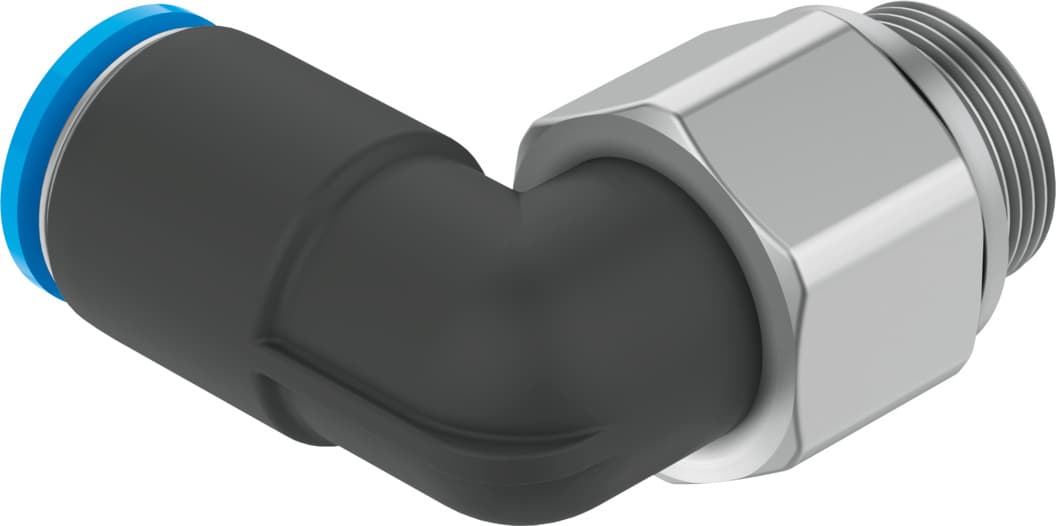

qsrl-g1/4-8
Selling Points
- 1The Festo QSRL-G1/4-8 features a 360° rotatable design with an internal ball bearing, ensuring efficient air distribution throughout the system.
- 2This fitting uses a simple push-in design, eliminating the need for adhesive or sealing tools, which saves time and energy during installation.
- 3The QSRL-G1/4-8 operates within a broad pressure range of -0.95 to 6 bar, making it suitable for various low-pressure environments.
- 4Constructed with polybutylene terephthalate (PBT) housing, this fitting is durable and resistant to wear, ensuring long-lasting performance.
- 5With a rotational speed of 400rpm, the QSRL-G1/4-8 is ideal for high-speed applications in industries such as printing presses and gas plants.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.6mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Max. rotational speed | 400rpm |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | 0°C 60°C | Max. radial torque | 0.015Nm |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 31g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186289 |
Specifications may be subject to change without notice
