Product Model
qss-10-50
Selling Points

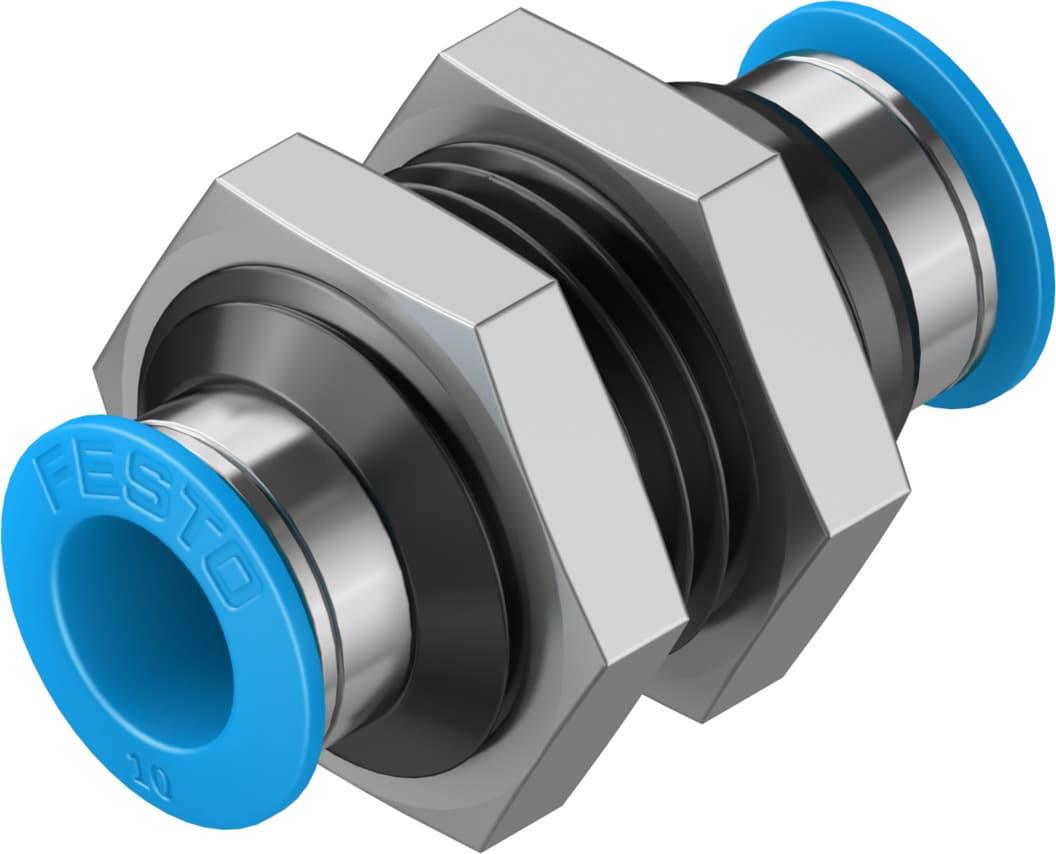

- 1Reliable Pneumatic Connection: The Festo QSS-10-50 push-in bulkhead connector ensures secure and reliable connections for pneumatic systems, ideal for various industrial applications.
- 2Versatile Design: With a standard size of 9 mm and a push-pull principle, this connector can be mounted in any position, making it versatile for different installation scenarios.
- 3High Operating Pressure: Capable of withstanding operating pressures up to 6 bar and temperature-dependent pressures up to 14 bar, this connector is suitable for demanding pneumatic systems.
- 4Corrosion Resistance: Classified as CRC 1 – Low corrosion stress, the QSS-10-50 bulkhead connector is designed to withstand corrosive environments, ensuring long-lasting performance.
- 5Easy Installation: Featuring a push-in design, this connector simplifies the installation process, reducing the need for specialized tools and minimizing downtime in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 9mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 35g |
Type of mounting | External hexagon, AF 24 | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Aluminum, anodized |
Releasing ring material | POM | Nut material | Brass, nickel-plated |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130791 |
Specifications may be subject to change without notice
