Product Model
qss-10-f
Selling Points

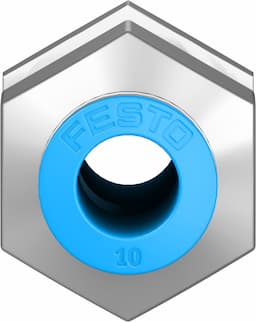

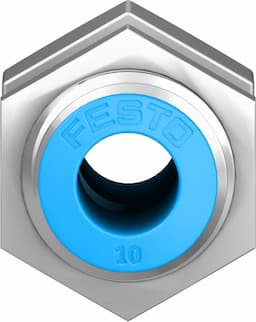

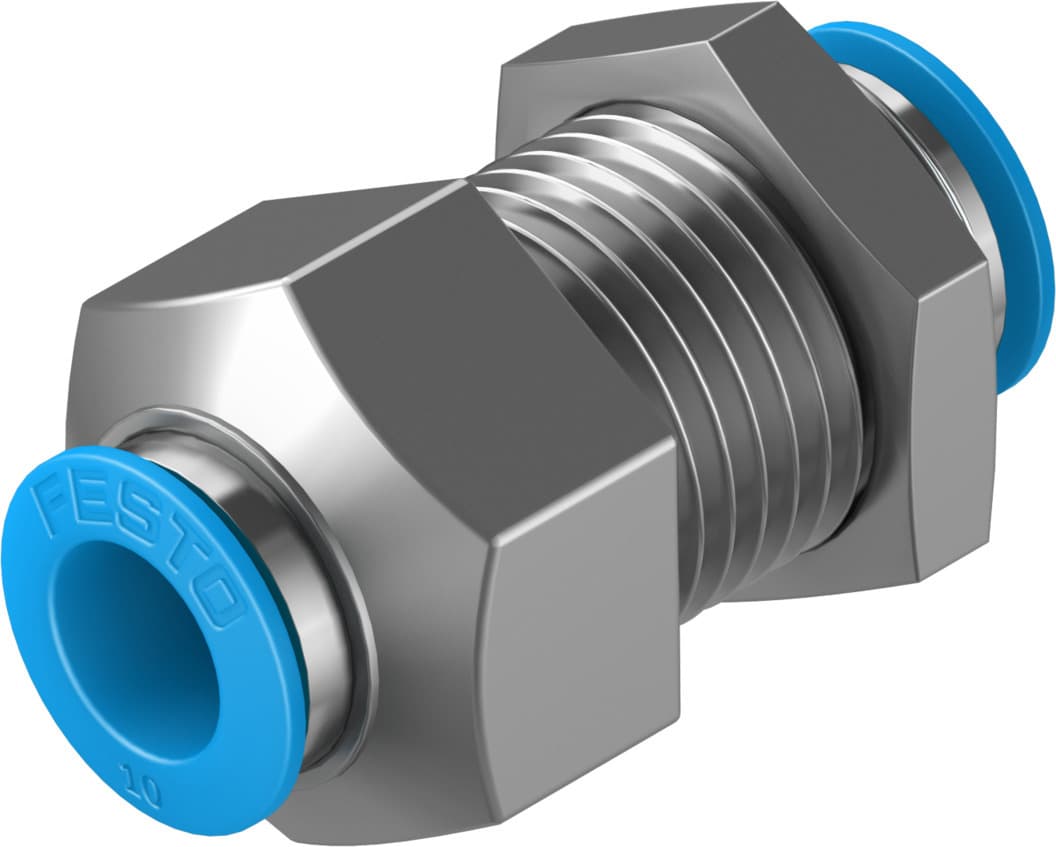

- 1The Festo QSS-10-F is a reliable and durable pneumatic bulkhead connector designed for various applications, including compressed air and water systems. Its brass nickel-plated body ensures high corrosion resistance.
- 2This push-in fitting features a 10mm external diameter, making it easy to install and connect with other pneumatic components. The optimized bending radius simplifies installation processes.
- 3The QSS-10-F operates within a wide temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it suitable for demanding industrial environments.
- 4The connector is made from highly resistant materials, including NBR tubing seal, Polyoxymethylene (POM) releasing ring, and high-alloy stainless steel tube retaining claw, ensuring maximum flexibility and abrasion resistance.
- 5Compliant with ISO 8573-1:2010 standards, the Festo QSS-10-F meets all requirements for standard applications with increased pressure and temperature ranges, ensuring reliable performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.5mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 86g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130643 |
Specifications may be subject to change without notice
