Product Model

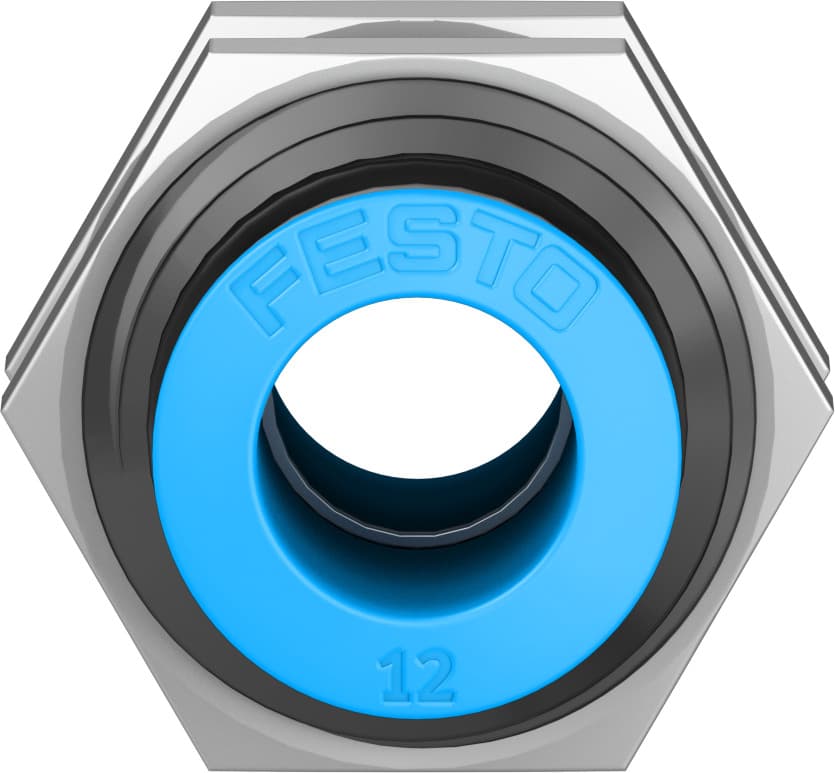

qss-12-20
Selling Points
- 1The Festo QSS-12-20 features a standard size of 11 mm nominal width, making it versatile for various applications. Its bulkhead design ensures secure and reliable connections.
- 2This connector offers optional mounting positions, allowing for flexibility in installation and use in different environments.
- 3The QSS-12-20 operates on a push-pull principle, simplifying the connection process and reducing the risk of misalignment.
- 4It supports a wide operating pressure range from -0.095 MPa to 0.6 MPa (or -0.95 bar to 6 bar) and temperature-dependent pressures up to 1.4 MPa (or 14 bar).
- 5The connector has a low corrosion stress class (CRC 1) and meets Class 4 cleanroom standards according to ISO 14644-1, ensuring it can be used in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 52g |
Type of mounting | External hexagon, AF 27 | Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Aluminum, anodized |
Releasing ring material | POM | Nut material | Brass, nickel-plated |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130792 |
Specifications may be subject to change without notice
