Product Model
qss-12-f
Selling Points

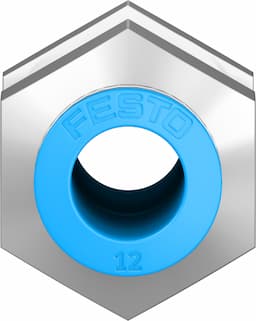

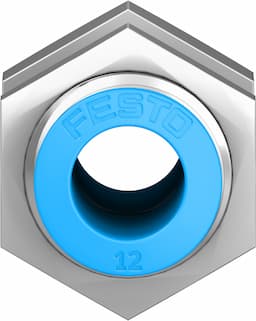

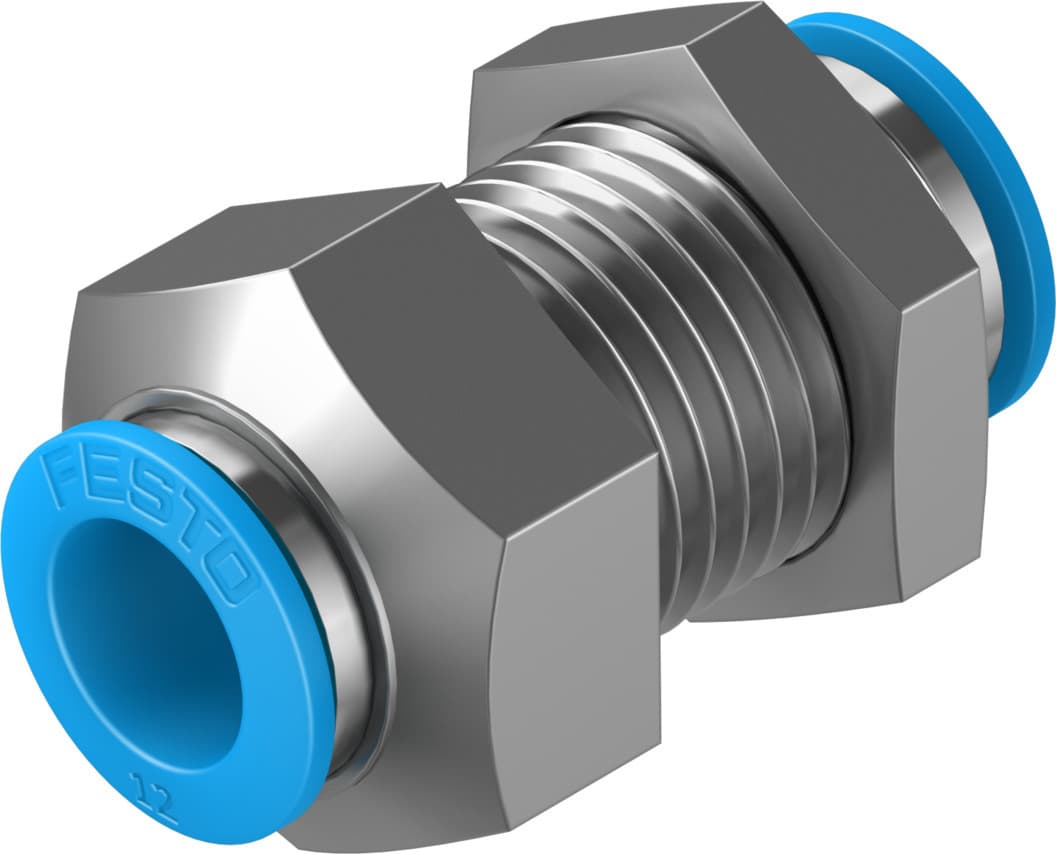

- 1The Festo QSS-12-F push-in bulkhead connector is designed for reliable pneumatic connections, suitable for tubing with an outer diameter of 12 mm.
- 2This connector features a push-pull principle and is available in a standard size with a nominal diameter of 7.5 mm, making it versatile for various applications.
- 3The QSS-12-F operates within a wide temperature range of -10 °C to 80 °C and supports both compressed air and water as operating mediums, ensuring flexibility in different environments.
- 4With a low corrosion stress classification (CRC 1) and LABS (PWIS) conformity, this connector is suitable for cleanroom applications and maintains its integrity in various conditions.
- 5The product is RoHS-compliant, made from high-quality materials such as brass (nickel-plated), POM, and high-alloy stainless steel, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7.5mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 105g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130644 |
