Product Model
qss-6-f
Selling Points

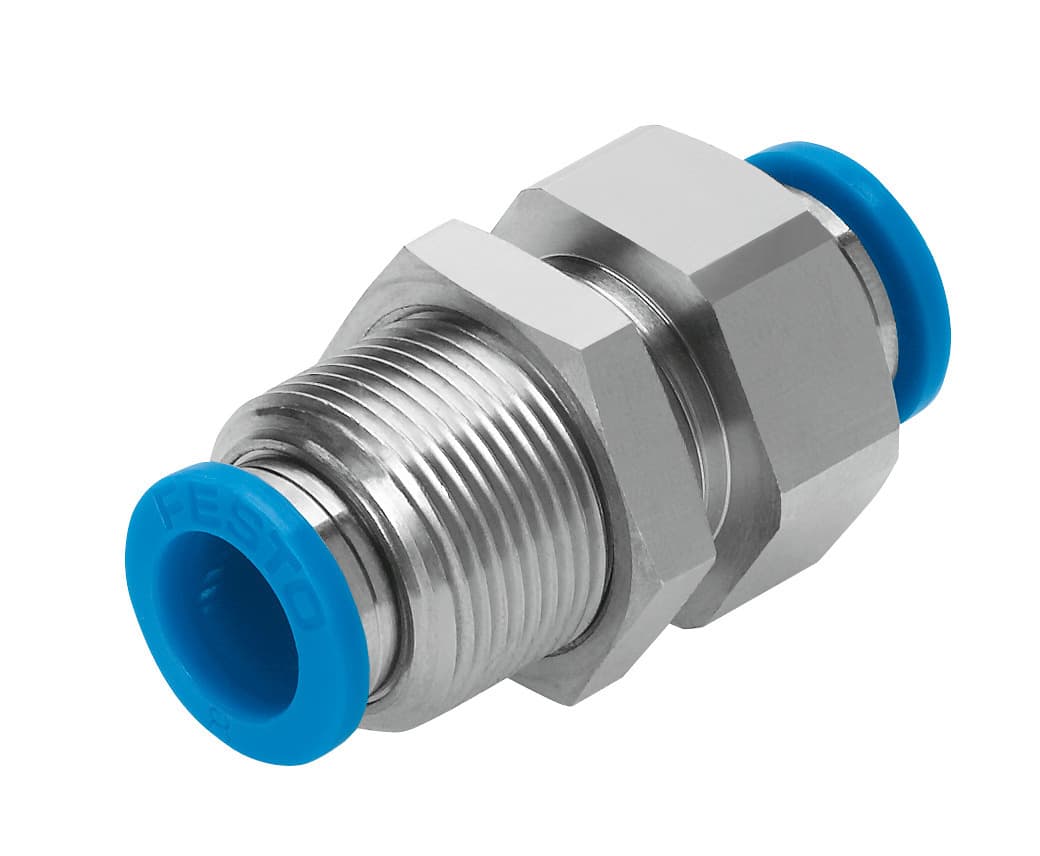

- 1The Festo QSS-6-F push-in bulkhead connector ensures secure and reliable pneumatic connections with its push-to-connect metric design.
- 2This connector operates within a pressure range of -0.95 to 6 bar and a temperature range of -10 to 80°C, making it suitable for various applications.
- 3Made from nickel-plated brass, the QSS-6-F bulkhead connector offers durability and resistance to corrosion, ensuring long-lasting performance.
- 4The push-in principle allows for quick and easy installation, reducing setup time and increasing efficiency in pneumatic systems.
- 5Available in a standard size with a nominal width of 4 mm, the QSS-6-F bulkhead connector fits seamlessly into various pneumatic systems, promoting standardization and compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Nut material | Brass, nickel-plated |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 193951 |
Specifications may be subject to change without notice
