Product Model
qss-8-50
Selling Points

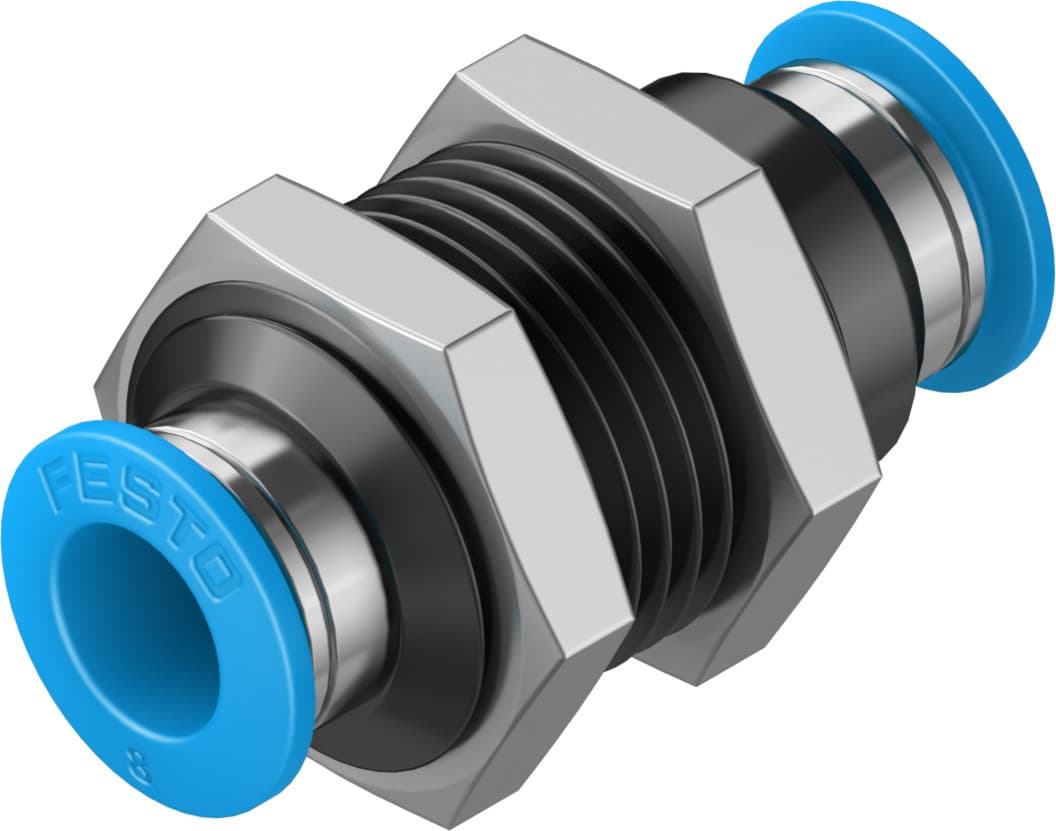

- 1The Festo QSS-8-50 push-in bulkhead connector is designed with a push/pull principle, ensuring easy installation and reliable connections in pneumatic systems.
- 2This bulkhead fitting is compatible with compressed air and water, meeting ISO 8573-1:2010 standards, making it suitable for a wide range of industrial applications.
- 3The QSS-8-50 features a brass nickel-plated body and a POM release ring, providing high corrosion resistance and durability in various operating conditions.
- 4With a nominal size of 7 mm and an operating pressure range of -0.95 to 6 bar, this bulkhead connector is ideal for applications requiring moderate to high pressure.
- 5The QSS-8-50 is part of the QS series, known for its flexibility, ease of installation, and high abrasion resistance, making it a versatile choice for dynamic and standard applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 19g |
Type of mounting | External hexagon, AF 19 | Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Aluminum, anodized |
Releasing ring material | POM | Nut material | Brass, nickel-plated |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130790 |
Specifications may be subject to change without notice
