Product Model
qss-8-f
Selling Points

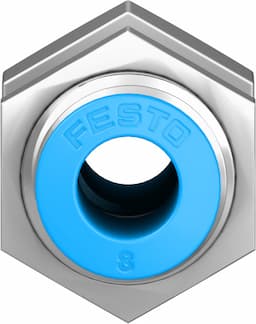

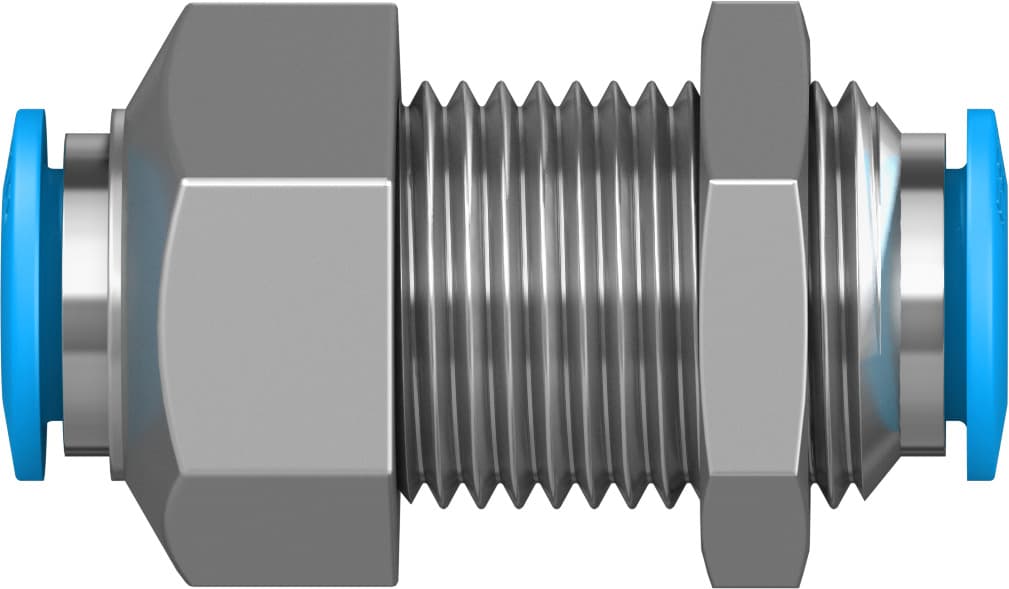

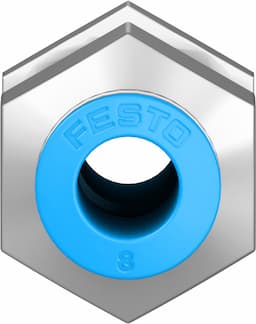

- 1High-Quality Material: The QSS-8-F bulkhead connector is made from brass with a nickel-plated housing, ensuring durability and resistance to corrosion.
- 2Wide Operating Range: This connector operates effectively within a temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it versatile for various pneumatic applications.
- 3Easy Installation: Featuring a push-in principle, the QSS-8-F bulkhead connector is easy to install and requires minimal effort, reducing setup time and increasing efficiency.
- 4Compliant with Regulations: The product conforms to RoHS and REACH regulations, ensuring it meets international standards for environmental and health safety.
- 5Suitable for Compressed Air: Designed for use with compressed air in accordance with ISO 8573-1:2010, this connector also supports water as an operating medium under specific conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.5mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 40g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130642 |
Specifications may be subject to change without notice
