Product Model
qssk-4
Selling Points

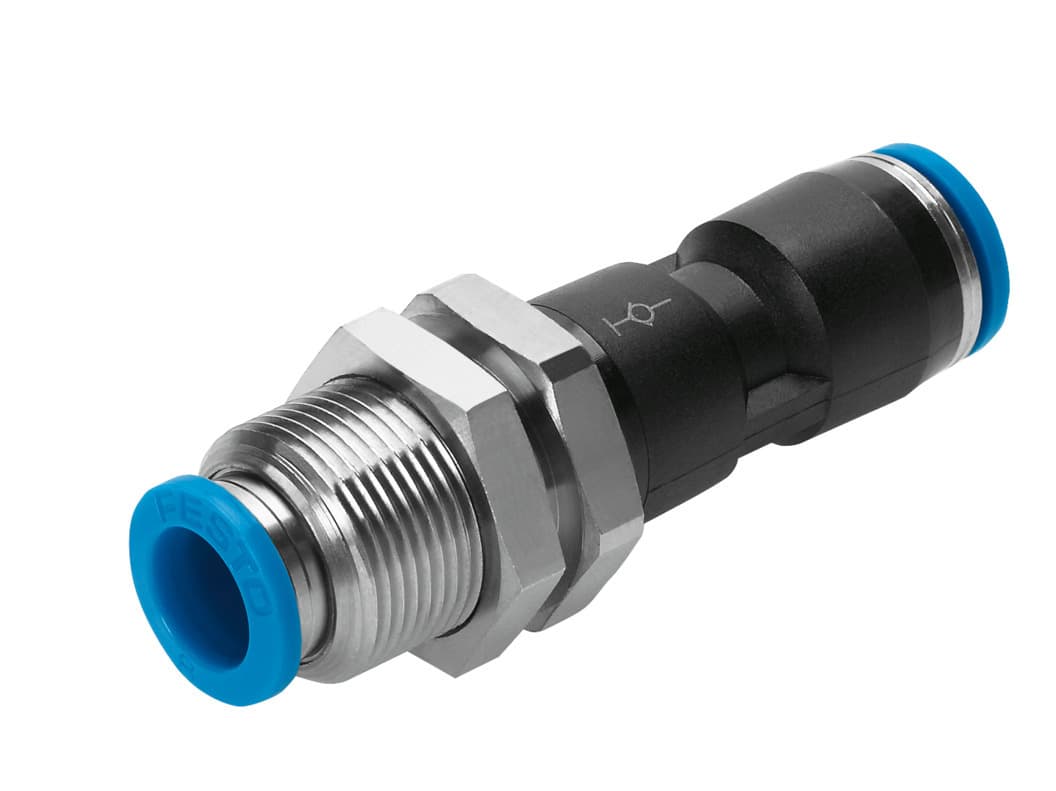

- 1The Festo QSSK-4 is a push-in bulkhead connector designed for easy and secure pneumatic connections. It features a nominal width of 1.5 mm and supports various tubing types, including PAN-, PAN-MF-, and PAN-R-.
- 2This bulkhead connector operates within a wide temperature range of -10°C to 80°C and can handle pressures up to 6 bar (87 psi) for compressed air and 0.6 MPa for water. It is also compatible with lubricated operation.
- 3The QSSK-4 is constructed with high-quality materials, including PBT for the housing, POM for the release ring, NBR for the tubing seal, and high-alloy stainless steel for the tube retaining claw. It is RoHS-compliant and meets low corrosion stress standards.
- 4The product is designed with a push-pull principle and allows for tubing insertion depth of 12.7 mm. It is available in a pack size of one unit and can be mounted in any position, making it versatile for various applications.
- 5The Festo QSSK-4 check valve ensures that the connection remains closed when the tubing is removed, providing a secure seal. It is ideal for use in pneumatic systems requiring reliable and efficient connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 1.5mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 12.7mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 14g | Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130637 |
Specifications may be subject to change without notice
