Product Model
qssk-8
Selling Points

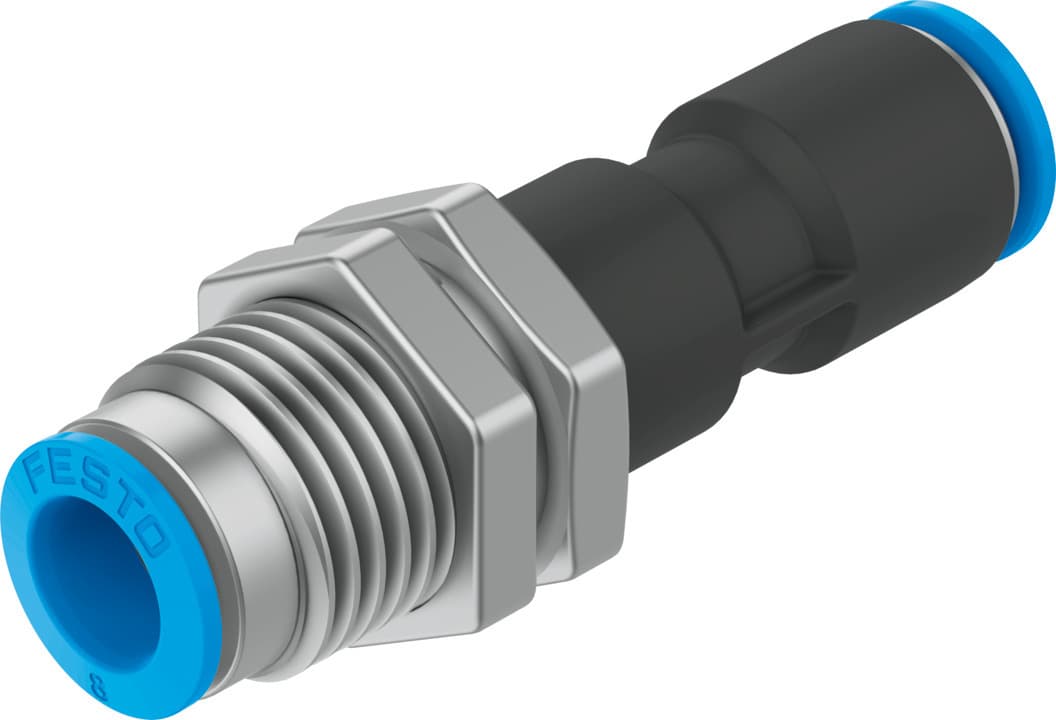

- 1The Festo QSSK-8 push-in bulkhead connector offers a standard size with a nominal width of 4.3 mm, ensuring precise and reliable pneumatic connections.
- 2This connector is approved for use with various tubing types, including PAN, PAN-MF, PAN-R, and PAN-V0, making it versatile for different pneumatic applications.
- 3The QSSK-8 operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, making it suitable for a wide range of environments.
- 4With a self-sealing design and push-pull principle, the QSSK-8 ensures easy and secure assembly, reducing the risk of leaks and improving system reliability.
- 5The connector is made from PBT material and features a blue-colored release ring, ensuring durability and easy identification. It also meets RoHS compliance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.3mm |
Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 18.3mm |
Mounting position | Any | Design | Bulkhead |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 38g | Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130639 |
Specifications may be subject to change without notice
