Product Model
qst-10-50
Selling Points

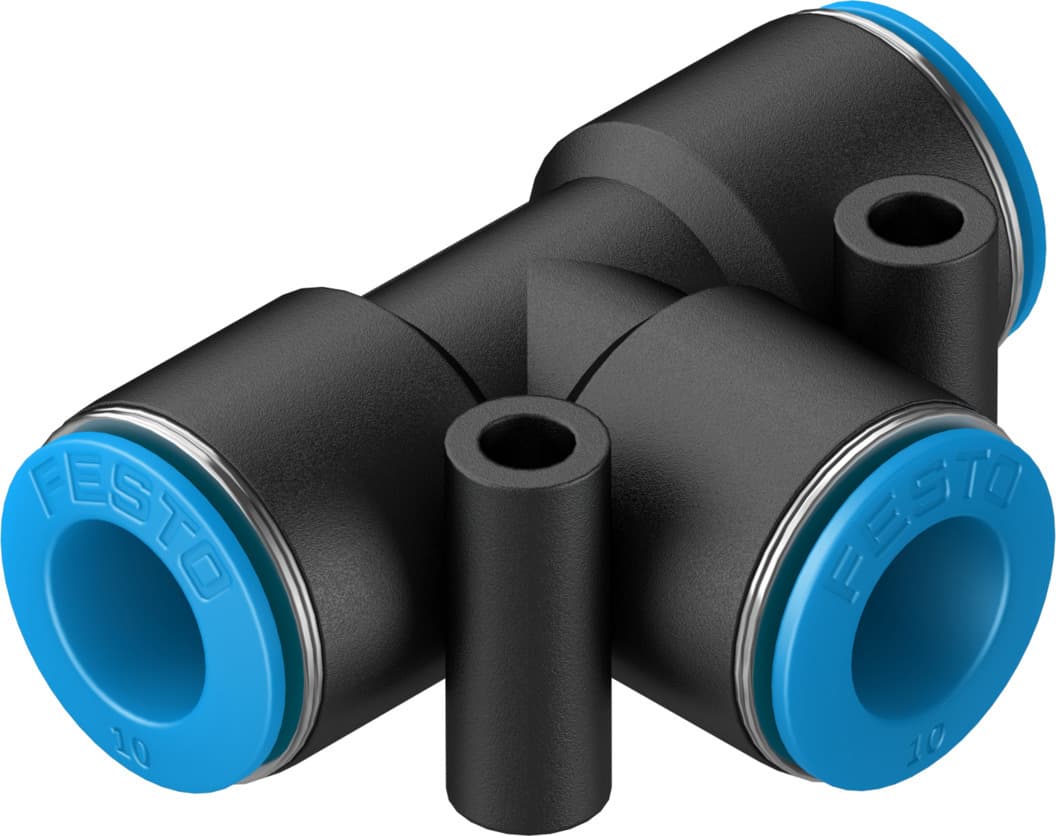

- 1The Festo QST-10-50 push-in T-connector is designed with a push-pull principle, making it easy to assemble and disassemble without the need for tools. This feature ensures quick and efficient connections in pneumatic systems.
- 2This T-connector is compatible with compressed air and water, operating within a pressure range of -0.95 to 6 bar and temperature range of -10 to 80°C. It also supports lubricated operation for enhanced performance.
- 3The QST-10-50 features a low corrosion stress classification (CRC 1) and conforms to LABS (PWIS) and VDMA24364-B1/B2-L standards, ensuring high reliability in various environments, including cleanrooms (Class 4 according to ISO 14644-1).
- 4The product is made from RoHS-compliant materials, including PBT for the housing, POM for the release ring, NBR for the tubing seal, and high-alloy stainless steel for the tubing clamp component. This ensures compliance with environmental regulations.
- 5The Festo QST-10-50 comes in a pack of 50 units, each weighing 25 grams. It has two pneumatic connections with an outer diameter of 10 mm, making it suitable for various tubing sizes and applications in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.1mm |
Mounting position | Any | Design | T-shape |
Pack size | 50 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 25g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130805 |
Specifications may be subject to change without notice
