Product Model

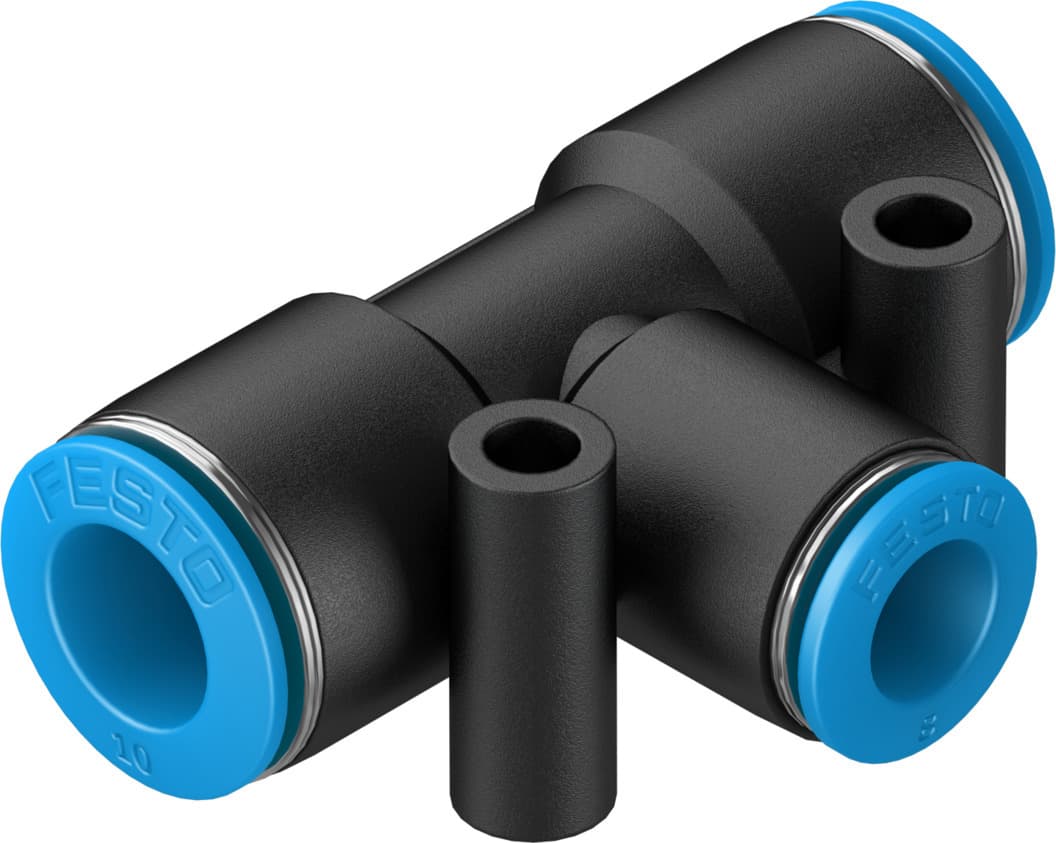

qst-10-8
Selling Points
- 1The QST-10-8 is made from durable materials, including PBT for the body, POM for the release ring, and high-alloy stainless steel for the tube retaining claw, ensuring long-lasting performance.
- 2This T-shaped fitting features a push-pull principle, allowing for easy installation and connection. It supports both compressed air and water, making it versatile for various applications.
- 3The QST-10-8 operates within a wide temperature range of -10°C to 80°C and supports pressures up to 6 bar, with temperature-dependent operating pressures reaching up to 14 bar.
- 4With a corrosion resistance class of CRC 1, this fitting is designed to withstand low corrosion stress, ensuring reliability in harsh environments.
- 5The optimized bending radius of the QST-10-8 makes it easy to install, reducing the risk of damage during assembly. Its blue release ring provides clear visual identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.9mm |
Mounting position | Any | Design | T-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 23g | No. of outlets | 2 |
No. of supply lines | 1 | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153136 |
Specifications may be subject to change without notice
