Product Model
qst-12-10-20
Selling Points

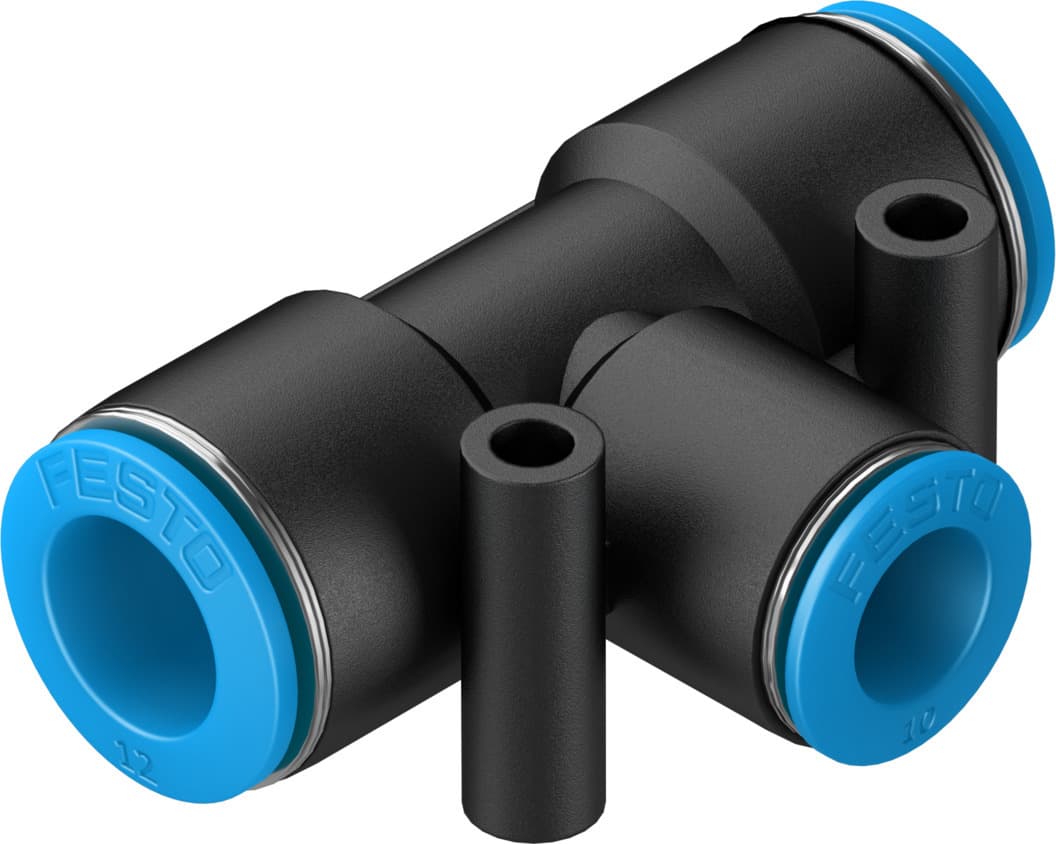

- 1The Festo QST-12-10-20 push-in T-connector is designed for tube-to-tube connections, ensuring reliable and efficient pneumatic system operation. Its standard size and nominal width of 6.1 mm make it versatile for various applications.
- 2This T-connector operates within a wide temperature range of -10°C to 80°C and supports both compressed air and water as operating mediums, meeting ISO 8573-1:2010 standards.
- 3The QST-12-10-20 features a push-pull principle design, allowing for easy assembly and disassembly without the need for tools. It is also lubricated operation possible, enhancing its durability.
- 4With a corrosion resistance class of 1 (low corrosion stress), this T-connector is suitable for use in environments where corrosion might be a concern. It is also RoHS-compliant, ensuring environmental safety.
- 5The Festo QST-12-10-20 push-in T-connector is available in packs of 20, making it convenient for bulk purchases. It weighs 34 grams and has two outlets with one supply line, making it compact and efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.1mm |
Mounting position | Any | Design | T-shape |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 34g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130823 |
Specifications may be subject to change without notice
