Product Model
qst-12-20
Selling Points

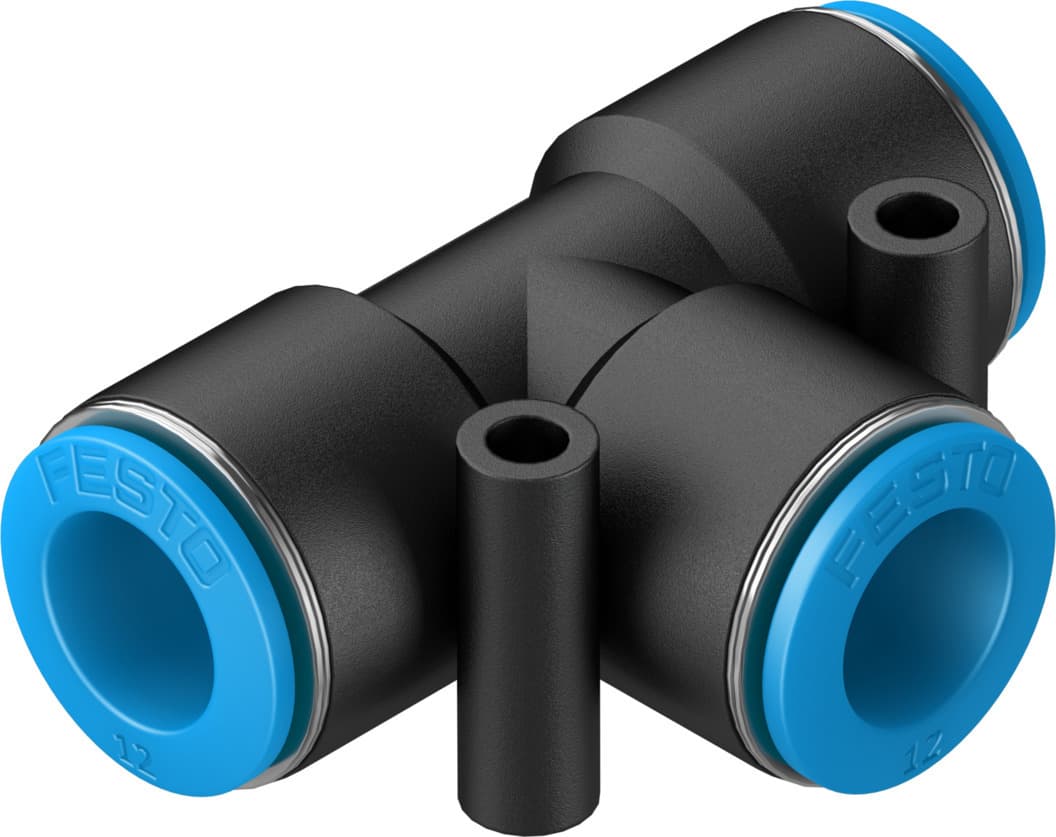

- 1The Festo QST-12-20 push-in T-connector is designed with a standard nominal size of 8.7 mm, ensuring compatibility with various pneumatic systems.
- 2This T-connector features a push/pull principle design, allowing for easy and secure connections without the need for tools.
- 3The QST-12-20 operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, making it suitable for diverse applications.
- 4The product is RoHS compliant and features a housing made of PBT, with a release ring made of POM, ensuring high-quality materials and durability.
- 5The Festo QST-12-20 is designed for use with compressed air according to ISO 8573-1:2010 and can also operate with water, making it versatile for various pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 10mm |
Mounting position | Any | Design | T-shape |
Pack size | 20 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 36g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130806 |
Specifications may be subject to change without notice
