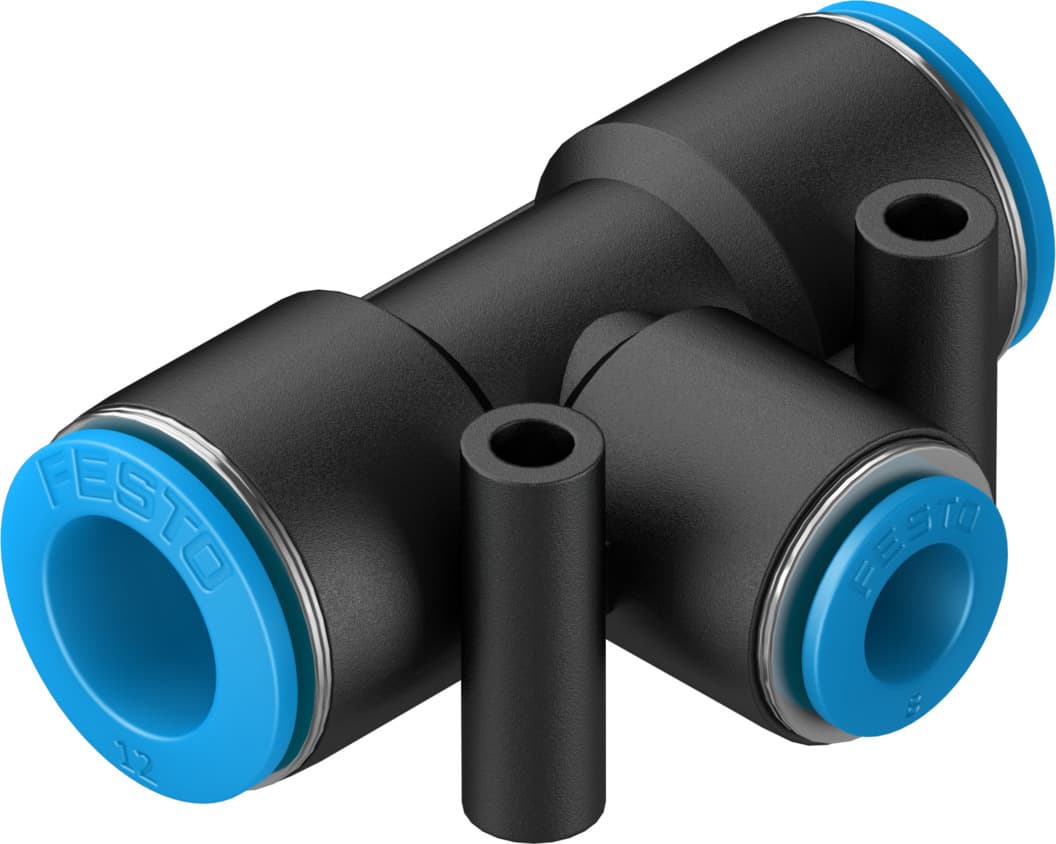

Festo QST-12-8 Push-in T-Connector: High-Quality Pneumatic Connection

Selling Points

1The Festo QST-12-8 push-in T-connector ensures a secure and reliable connection with its push/pull principle, suitable for various assembly positions.
2Compatible with compressed air in accordance with ISO8573-1:2010 and water as per manufacturer's declaration, making it versatile for different applications.
3Classified as CRC 1, indicating low corrosion stress, ensuring durability in various environments.
4Operates effectively within an ambient temperature range of -10°C to 80°C, making it suitable for a wide range of applications.
5With a nominal size of 5.1 mm and a container size of 10, the QST-12-8 is designed for compact installations without compromising on performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	5.1mm
Mounting position	Any	Design	T-shape
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	32g
No. of outlets	2	No. of supply lines	1
Pneumatic connection 1	for pneumatic tubing outside diameter 12 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130615

Specifications may be subject to change without notice
