Product Model
qst-16
Selling Points

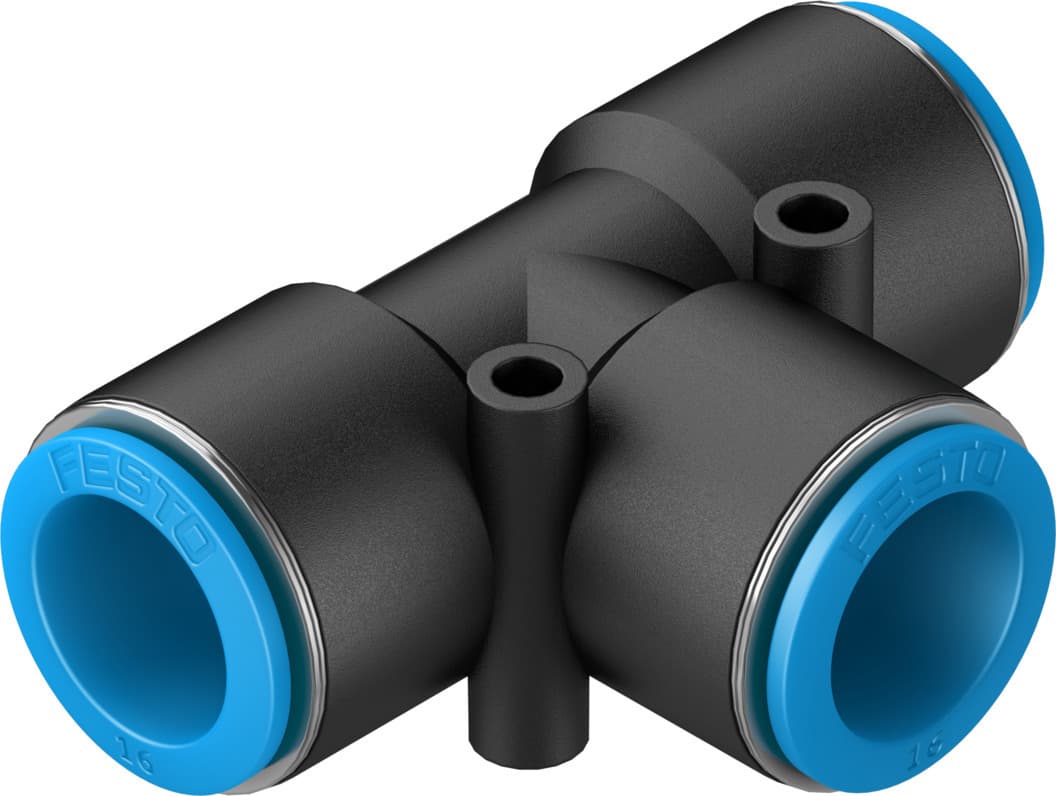

- 1The Festo QST-16 push-in T-connector is designed with a standard size and nominal width of 10.7 mm, making it versatile for various pneumatic applications.
- 2This T-connector operates within a temperature range of -10°C to 80°C and supports operating pressures from -0.95 to 6 bar, ensuring reliable performance in diverse environments.
- 3The QST-16 features a push-pull principle design, allowing for easy and secure connection and disconnection of pneumatic tubes. It is suitable for both compressed air and water operations.
- 4With a corrosion resistance classification of 1 (low corrosion stress), the QST-16 is ideal for applications where resistance to corrosion is crucial. It is also RoHS compliant, ensuring environmental safety.
- 5The T-connector has two outlets and one supply line, making it a convenient and efficient solution for pneumatic systems. It is available in a pack size of one unit, ensuring easy handling and storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 13mm |
Mounting position | Any | Design | T-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 44g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 16 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153133 |
Specifications may be subject to change without notice
