qst-1/8-4-100

Selling Points

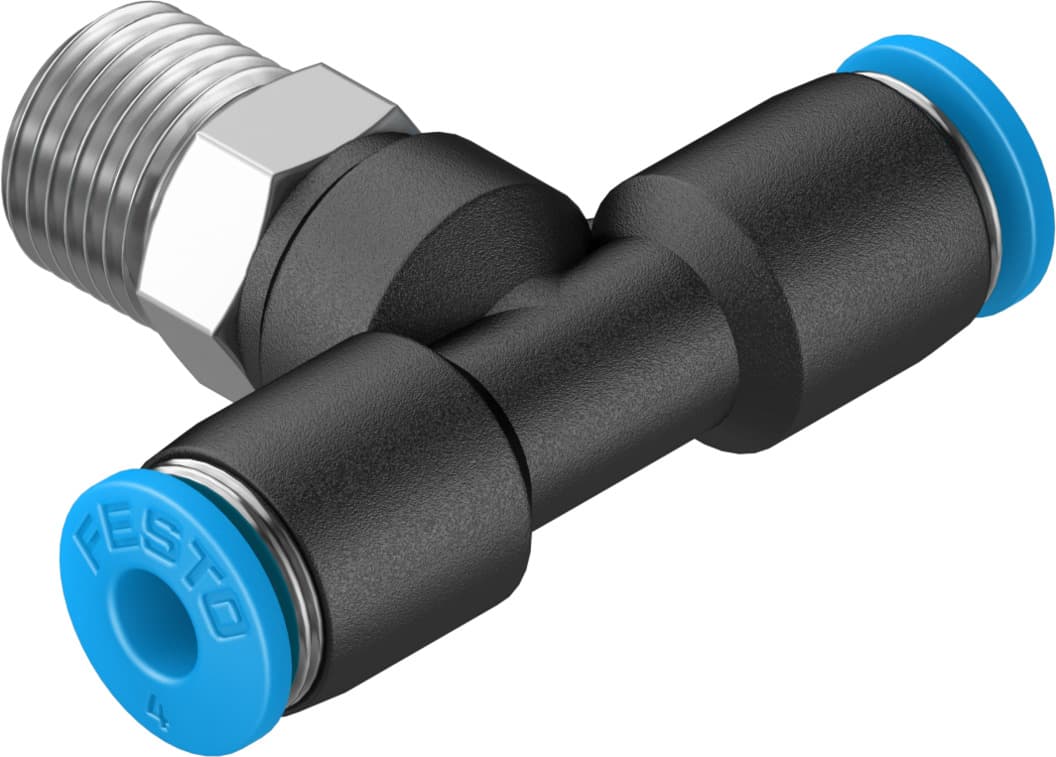

• 1The Festo QST-1/8-4-100 push-in T-fitting is designed with a T-shape and push-pull principle, ensuring easy and secure connections in pneumatic systems. It features a nominal width of 2.8 mm and operates within a temperature range of -10°C to 80°C.
• 2This push-in fitting is compatible with compressed air to ISO 8573-1:2010 and water (liquid, ice-free) as operating media. It supports lubricated operation and has a corrosion resistance class of CRC 1, making it suitable for various industrial applications.
• 3The QST-1/8-4-100 comes with a blue releasing ring and is made from nickel-plated brass for the screwed plug, PBT for the housing, and POM for the releasing ring. It includes an external hexagon mounting with a size of 10 mm and supports up to 0.6 MPa (6 bar) operating pressure.
• 4This product is part of Festo's QS standard series and is available in packs of 100 units. It has a nominal tightening torque of 7 Nm with a tolerance of ±20% and weighs approximately 13 grams. It is also RoHS-compliant and suitable for cleanroom environments (Class 4 according to ISO 14644-1).
• 5The Festo QST-1/8-4-100 push-in T-fitting is designed for reliability and durability. It supports temperature-dependent operating pressures up to 1.4 MPa (14 bar) and is suitable for various industrial applications, including those requiring low corrosion stress and cleanroom environments.
