Product Model
qst3-10-8
Selling Points

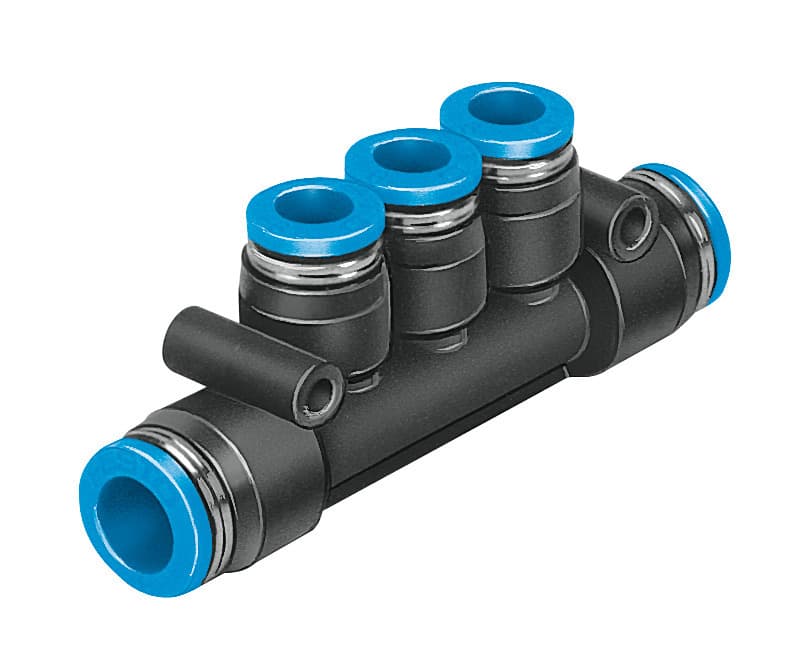

- 1The Festo QST3-10-8 multiple distributor fitting ensures secure and reliable connections with its push-pull principle design.
- 2Suitable for compressed air and water applications, making it versatile for various industrial uses.
- 3Operates effectively within a wide temperature range of -10°C to 80°C, ensuring durability in diverse environments.
- 4Classified as CRC 1, this fitting exhibits low corrosion stress, making it ideal for harsh industrial conditions.
- 5Featuring a standard size of 4.9 mm and a simple push-pull design, the QST3-10-8 is easy to install and use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.9mm |
Mounting position | Any | Structural design | Push-pull principle |
Pack size | 1 | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Product weight | 33g | No. of outlets | 4 |
No. of supply lines | 1 | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153205 |
Specifications may be subject to change without notice
