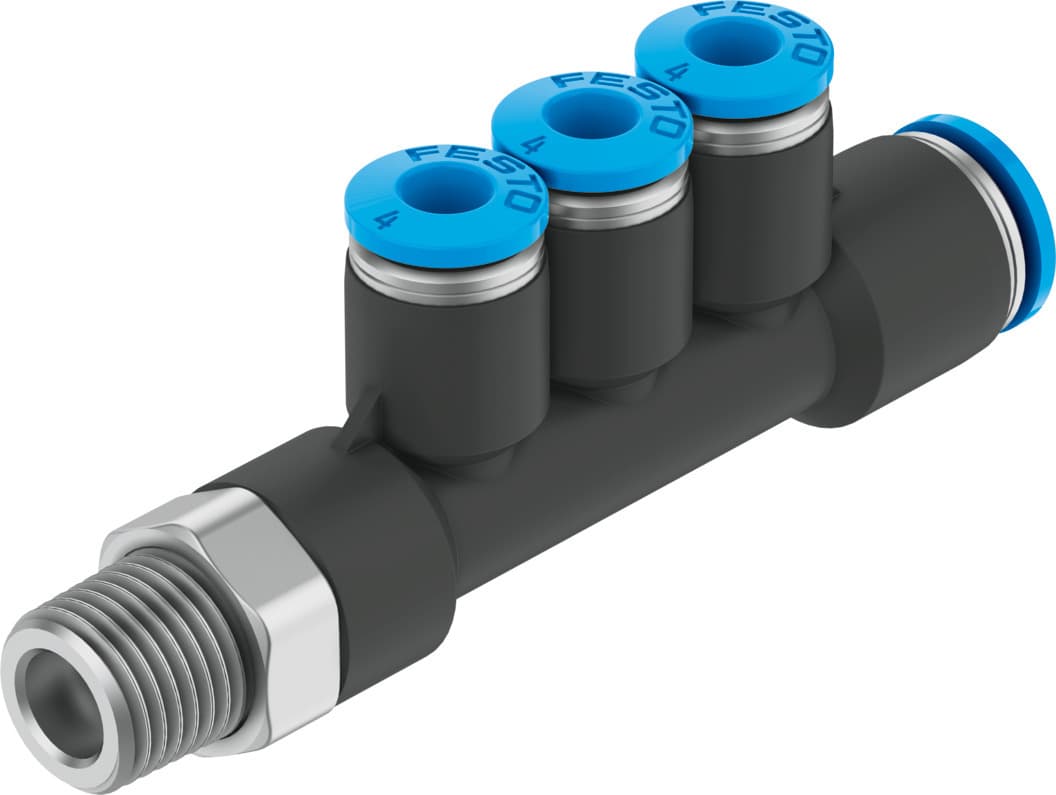

Product Model
qst3-1/4-8-6
Selling Points
- 1Standard Size and Design: The Festo QST3-1/4-8-6 multiple distributor features a standard size of 4.6 mm, ensuring compatibility with various pneumatic systems. Its push-pull principle design enhances ease of use and reliability.
- 2Operating Pressure Range: This product operates within a wide temperature-dependent pressure range of -0.095 MPa to 1.4 MPa, making it suitable for diverse applications. It can handle up to 0.6 MPa for water at 0 - 50 °C.
- 3Corrosion Resistance: The QST3-1/4-8-6 boasts a low corrosion stress class (CRC 1) and conforms to LABS (PWIS) standards, ensuring durability in various environments. It is also RoHS-compliant, meeting environmental regulations.
- 4Versatile Mounting Options: The product offers optional mounting positions, allowing for flexible installation in different setups. This feature enhances its adaptability to various pneumatic systems and applications.
- 5Material Quality: Constructed with high-quality materials, including PBT for the housing, POM for the release ring, NBR for the tubing seal, and high-alloy stainless steel for the tube retaining claw, ensuring robust performance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.6mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Product weight | 35g |
No. of outlets | 4 | No. of supply lines | 1 |
Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153201 |
Specifications may be subject to change without notice
