Product Model
qst-3/8-10
Selling Points

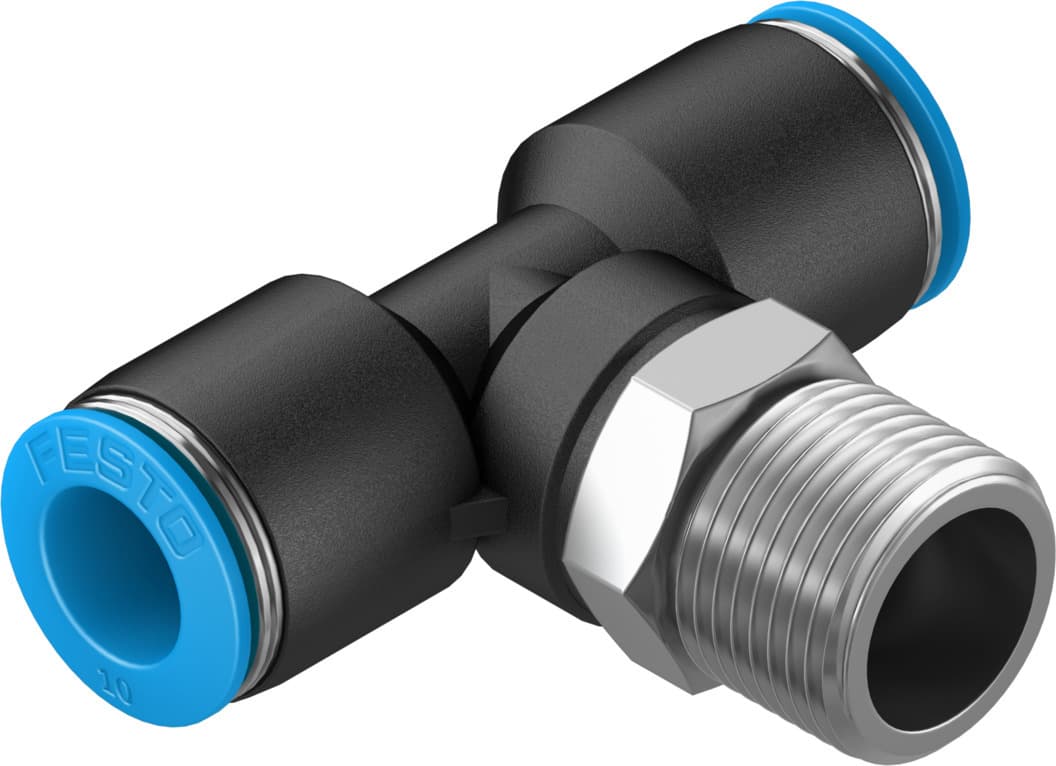

- 1The Festo QST-3/8-10 push-in T-fitting offers a nominal width of 8.3 mm, ensuring precise and secure connections in various applications.
- 2This T-fitting is designed with a push-pull principle, allowing for easy installation and operation across a wide temperature range.
- 3The QST-3/8-10 supports operating pressures up to 0.6 MPa (6 bar) for compressed air and 0.6 MPa at 50 °C for water, making it versatile for different media.
- 4The fitting is RoHS-compliant and features a brass, nickel-plated screwed plug, ensuring high corrosion resistance and durability.
- 5The QST-3/8-10 is suitable for cleanroom environments, meeting Class 4 standards according to ISO 14644-1, and is also LABS (PWIS) compliant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | T-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 42g | No. of outlets | 2 |
No. of supply lines | 1 | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153113 |
Specifications may be subject to change without notice
