Product Model
qst-3/8-16
Selling Points

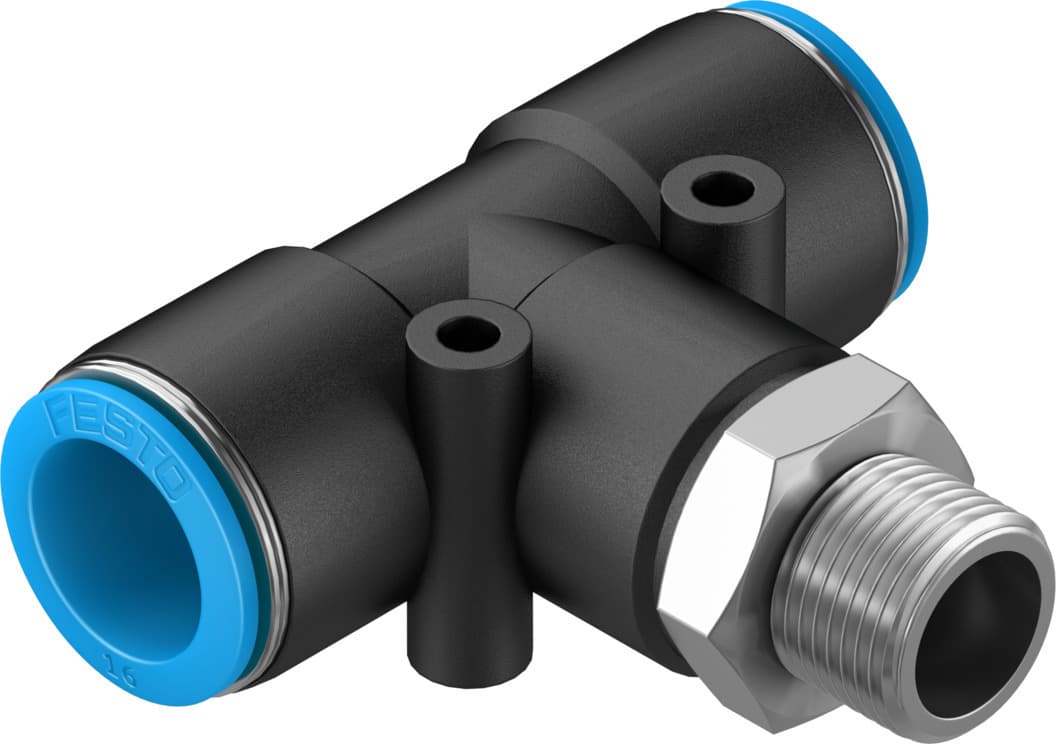

- 1The Festo QST-3/8-16 push-in T-fitting offers a 360° orientable male thread with an external hexagon, ensuring versatility in your pneumatic system setup.
- 2This fitting is designed to operate with compressed air in accordance with ISO8573-1:2010, making it suitable for a wide range of industrial applications.
- 3The QST-3/8-16 features a corrosion resistance classification of CRC 1, indicating low corrosion stress and durability in various environments.
- 4The fitting allows for lubricated operation, enhancing its performance and longevity in demanding pneumatic systems.
- 5With a nominal size of 11 mm and a maximum tightening torque of 22 Nm, this fitting is engineered to meet precise technical requirements. It also includes a blue release ring and is made from RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | T-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 89g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon, AF 22 | Pneumatic connection 1 | External thread R3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 164959 |
Specifications may be subject to change without notice
