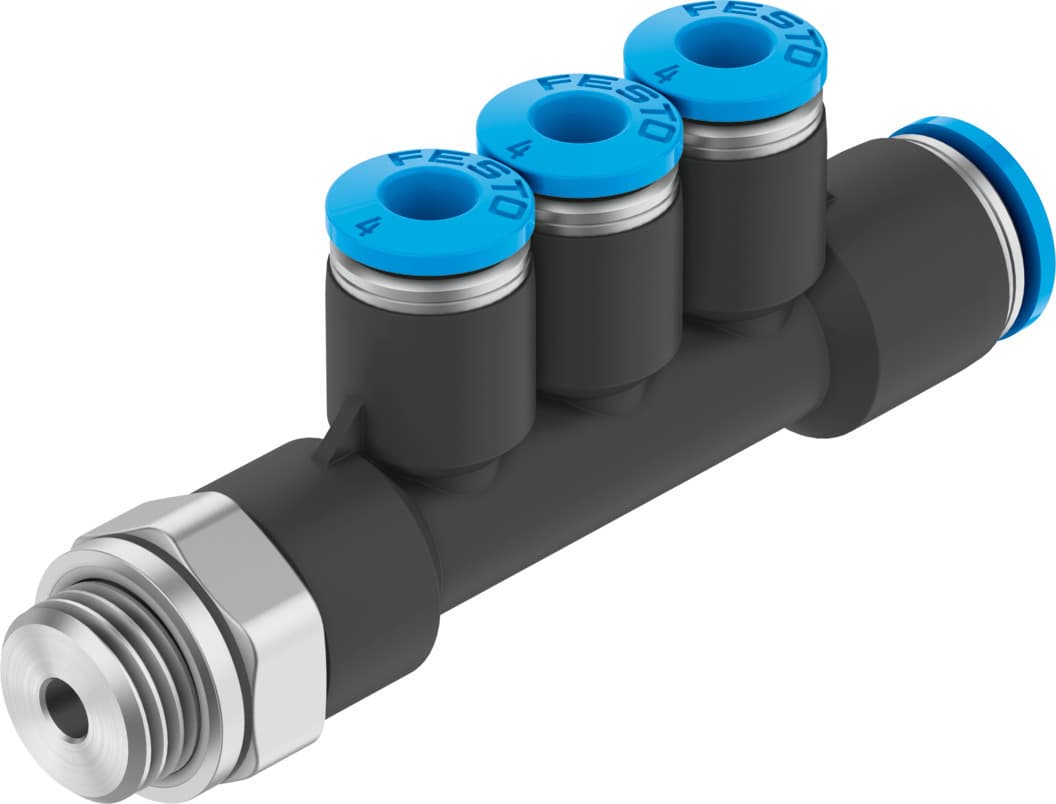

Product Model
qst3-g1/4-8-6
Selling Points
- 1The QST3-G1/4-8-6 features a 360° orientable design, allowing for easy installation and flexibility in various applications.
- 2Equipped with 4 outlets, this multiple distributor provides multiple connections for your pneumatic system, enhancing efficiency and versatility.
- 3With a standard nominal size of 4.6 mm, the QST3-G1/4-8-6 ensures compatibility with a wide range of pneumatic fittings and tubes.
- 4The product uses a sealing ring for secure connections, ensuring reliable operation and minimizing leaks.
- 5Designed with a push-pull principle, the QST3-G1/4-8-6 makes it easy to connect and disconnect pneumatic tubing without the need for tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.6mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 9Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 35g |
No. of outlets | 4 | No. of supply lines | 1 |
Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186218 |
Specifications may be subject to change without notice
