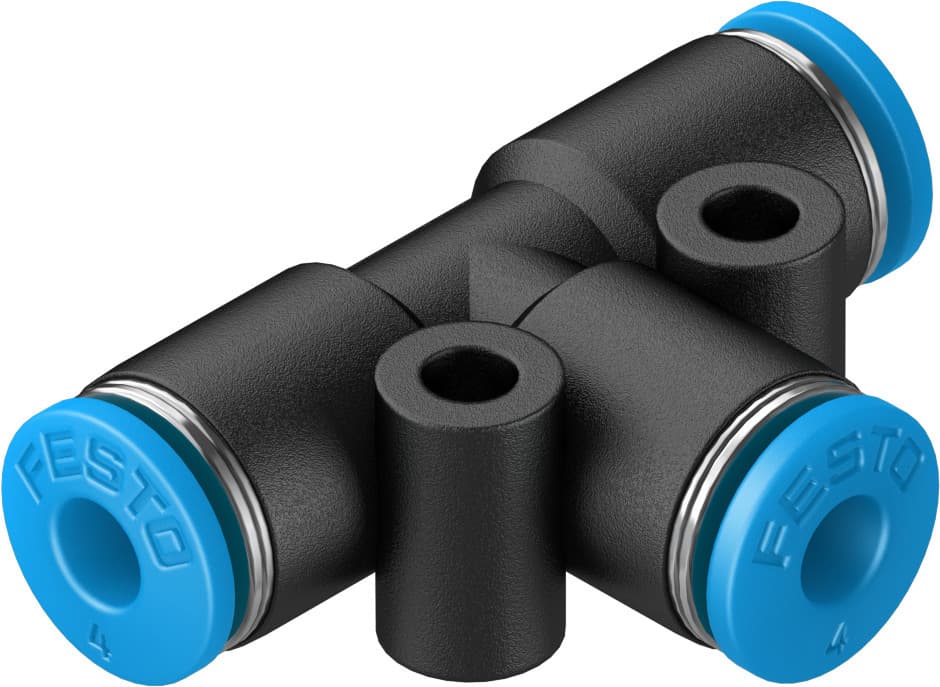

Product Model
qst-4-100
Selling Points
- 1Reliable Tube-to-Tube Connection: The Festo QST-4-100 series provides a secure and reliable tube-to-tube connection, ensuring consistent performance in pneumatic systems.
- 2Push-Pull Principle: Designed with a push-pull principle, this T-connector makes installation and maintenance straightforward, reducing downtime and increasing efficiency.
- 3Durable Construction: Constructed from high-quality PBT housing, the QST-4-100 is resistant to corrosion and can withstand various operating temperatures, ensuring long-lasting performance.
- 4Versatile Operating Medium: Suitable for compressed air to ISO 8573-1:2010 and water according to manufacturer's declaration, this connector is versatile for different operating mediums.
- 5Easy Installation: With an optional mounting position and a nominal width of 2.8 mm, the QST-4-100 can be easily integrated into various pneumatic systems, offering flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.8mm |
Mounting position | Any | Design | T-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 7.5g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130802 |
Specifications may be subject to change without notice
