Product Model

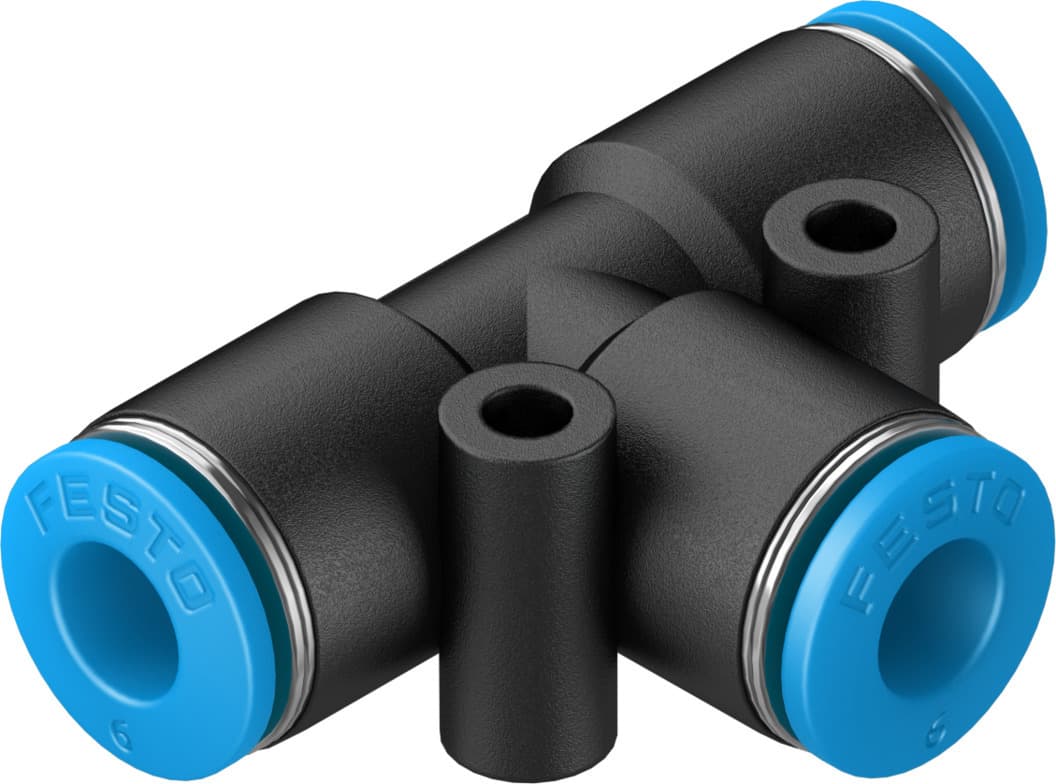

qst-6-100
Selling Points
- 1The QST-6-100 is made from polybutylene terephthalate (PBT) body, NBR tubing seal, and polyoxymethylene (POM) releasing ring, ensuring durability and resistance to corrosion.
- 2This T-connector features a T-shape design with 1 inlet and 2 outlets, making it ideal for various pneumatic applications, including compressed air and water systems.
- 3The push-pull principle of the QST-6-100 makes installation straightforward, with an optimized bending radius that simplifies the fitting process.
- 4The connector operates within a wide temperature range of -10°C to 80°C, ensuring reliable performance in various environmental conditions.
- 5The QST-6-100 meets ISO 8573-1:2010 standards and is compliant with RoHS regulations, making it suitable for use in cleanroom environments and maritime applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4.8mm |
Mounting position | Any | Design | T-shape |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 11g |
No. of outlets | 2 | No. of supply lines | 1 |
Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130803 |
Specifications may be subject to change without notice
