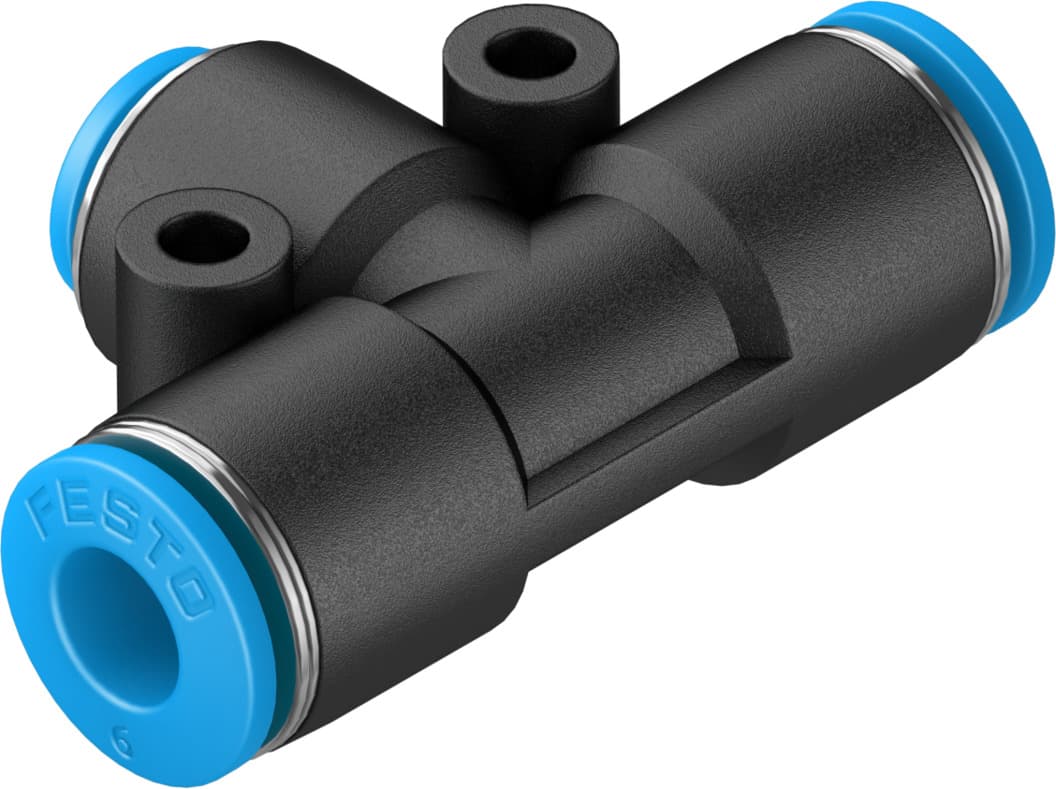

Festo QST-6-4-100 Push-in T-Connector - High-Quality Pneumatic Connection

Selling Points

1The Festo QST-6-4-100 push-in T-connector is designed for tubing outside diameters of 6 mm and 4 mm, ensuring versatile pneumatic connections.
2This T-connector operates within a temperature range of -10 °C to 80 °C, making it suitable for various industrial environments.
3With a push-pull principle, the QST-6-4-100 offers easy and secure connection and disconnection, reducing the risk of damage.
4The product is RoHS-compliant, ensuring compliance with environmental regulations and safety standards.
5The QST-6-4-100 features a blue release ring and is made from high-quality materials like PBT, POM, and NBR, ensuring durability and reliability in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	2.3mm
Mounting position	Any	Design	T-shape
Pack size	100	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	11g
No. of outlets	2	No. of supply lines	1
Pneumatic connection 1	For pneumatic tubing outside diameter 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130820

Specifications may be subject to change without notice
