Product Model
qstf-1/8-5/32-u
Selling Points

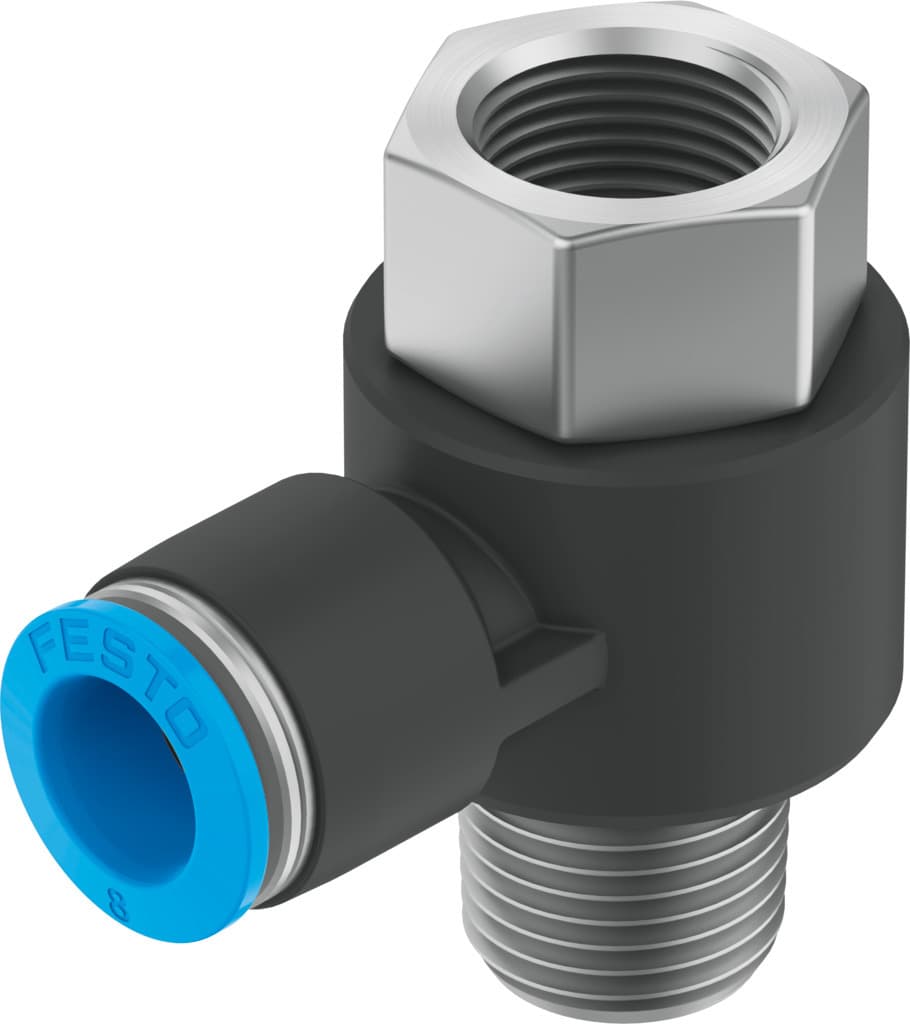

- 1The Festo QSTF-1/8-5/32-U push-in T-fitting is designed for use with compressed air, ensuring reliable operation in a wide range of pneumatic applications.
- 2This fitting features a 3 mm nominal width and operates under pressures up to 10 bar, making it suitable for various industrial and commercial settings.
- 3The QSTF-1/8-5/32-U is constructed with high-quality materials, including PBT housing and POM releasing ring, ensuring durability and resistance to corrosion.
- 4With its push-pull principle design and external hexagon mounting, this fitting offers easy assembly and disassembly, enhancing maintenance efficiency.
- 5The QSTF-1/8-5/32-U is compatible with ISO 8573-1:2010 standards and can operate with oil lubrication, making it versatile for different pneumatic system requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape, additional connection internal thread lengthwise | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Max. tightening torque | 8Nm | Product weight | 23g |
No. of outlets | 2 | No. of supply lines | 1 |
Type of mounting | External hexagon 9/16 | Pneumatic connection 1 | external thread 1/8 NPT |
Pneumatic connection 2 | Female thread 1/8 NPT for pneumatic tubing outside diameter 5/32" | Ambient temperature Fahrenheit | 14°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 190823 |
Specifications may be subject to change without notice
